在高端工业自动化设备中，确保高密度互连下的信号完整性对连接器性能提出了更严苛的标准。维峰电子推出的3615系列是一款间距0.80mm的高密度板对板连接器，具有小体积、高性能特点，可为设备提供稳定的信号传输。

In high-end industrial automation, high-density interconnects demand uncompromising signal integrity. Meeting this challenge, Wcon Electronics' 3615 Series is a high-density board-to-board connector with a 0.80mm pitch, combining a compact form factor with robust performance to guarantee stable signal transmission in your equipment.

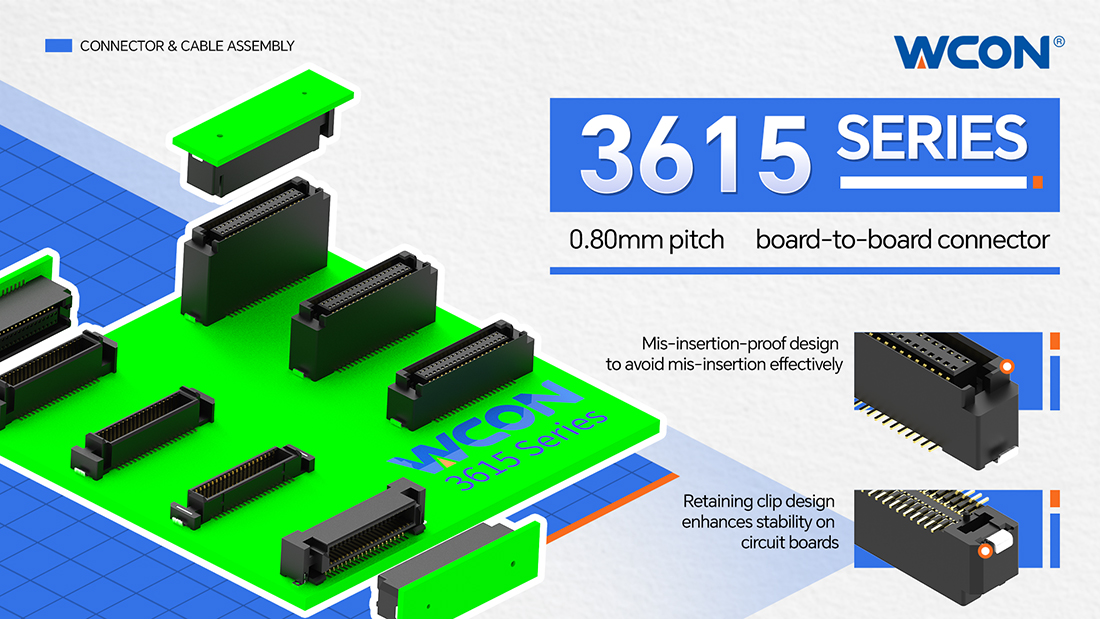

该产品配备导向柱与防误插结构，确保精准对位；支持多种组合高度，适配不同堆叠需求；并通过固定片设计增强在PCB板上的安装稳定性，广泛应用于自动化设备与工业电脑等关键领域。

This product incorporates alignment pins and anti-misinsertion features for precise mating; supports multiple stacking heights to accommodate diverse stacking requirements; and enhances PCB mounting stability through a robust retention mechanism. It finds extensive application in critical sectors such as automation equipment and industrial computers.





产品特性

· 广泛的配合高度：7～17mm；

· 最高可达140pin；

· 固定片设计，稳定连接；

· 键位设计，确保正确连接。



Product Features

· Wide mating height range: 7–17mm

· Up to 140 pins

· Locking clip design for secure connection

· Polarized design for correct connection.





性能规格

• 额定电流：0.5A

• 额定电压：200V AC

• 绝缘电阻：1000MΩ Min

• 耐电压:   500V AC/Min

• 使用温度：-40° C~+105° C

Performance Specifications

• Rated current: 0.5A

• Rated voltage: 200V AC

• Insulation resistance: 1000MΩ Min

• Withstand voltage: 500V AC/Min

• Operating temperature: -40°C to +105°C



 标准

· EIA 364

Standards

· EIA 364



应用领域

• 工业自动化

• 工业设备

Applications

• Industrial Automation

• Industrial Equipment



获取技术资源

下载详细的3615系列数据表(PDF)，在线查看3D模型，从而优化您的项目选型和设计流程。

Access Technical Resources

Download the detailed 3615 Series datasheet (PDF) and view the 3D model online to streamline your project selection and design process.
