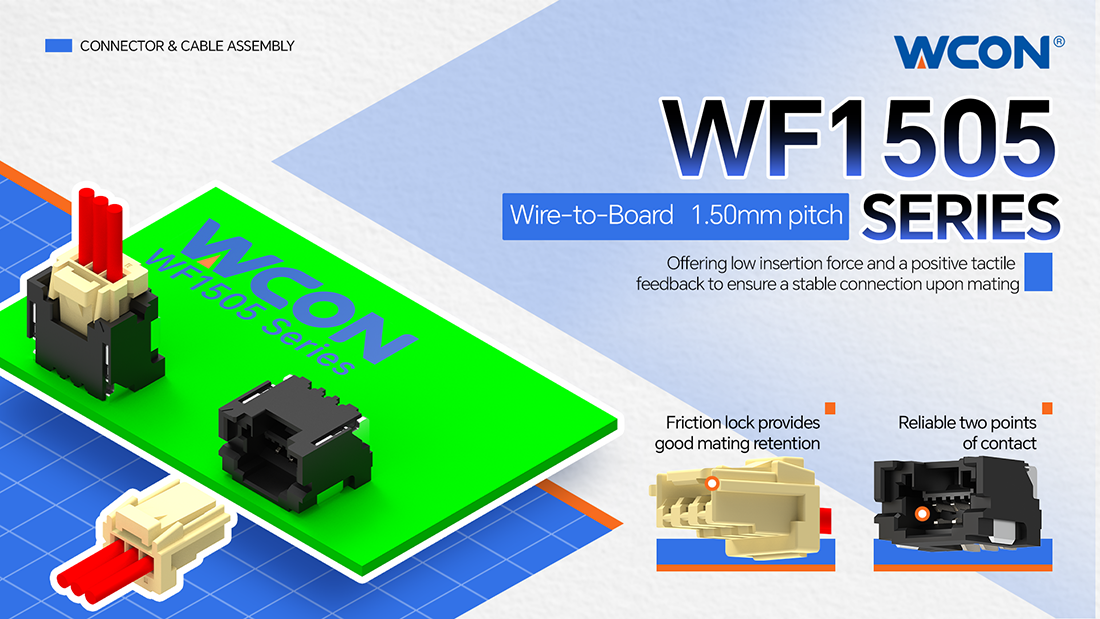

As electronic devices become increasingly compact and modular, higher demands are placed on connector stability. The WF1505 series is a 1.50mm pitch crimp- type wire- to- board connector featuring low insertion force and a distinct tactile feel. Paired with anti-misplug structure, it ensures precise alignment and stable connections.

This product employs a dual- contact terminal design with a friction lock mechanism to enhance retention force. Its box- type structure effectively protects contacts while improving mechanical durability. It flexibly accommodates compact wiring needs in industrial equipment, smart home appliances, communication modules, and similar applications.

Product Features

- Dualpoint contact terminals ensure stable connections

- Friction lock design provides secure retention

- Keyed alignment guarantees correct mating

Performance Specifications

- Rated Current: 2.0A

- Rated Voltage: 100V AC

- Insulation Resistance: 500MΩ Min

- Withstand Voltage: 500V AC/min

- Operating Temperature: - 40°C to +105°C

- Applicable wire gauge: #AWG 24- 30

Standards

- EIA 364

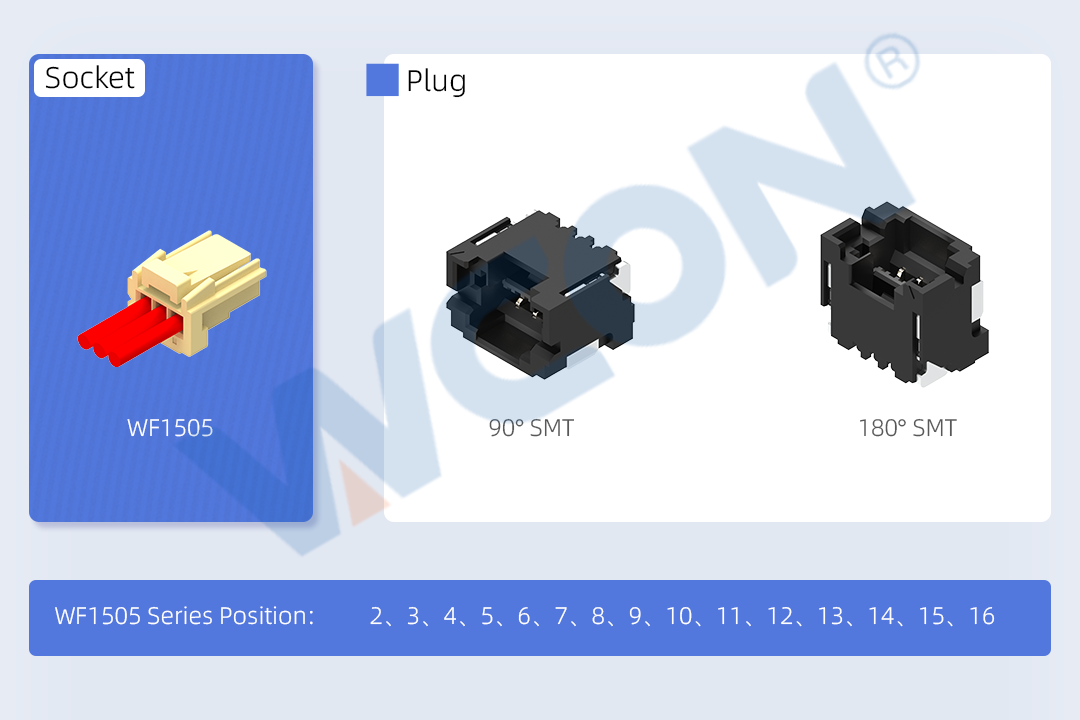

 Sheet Data

Application

- Industrial equipment

- Smart home appliances

Get Professional Support

If you require assistance with product selection, customized application solutions, or technical support for the WF1505 series, please feel free to contact our technical support team at any time.
