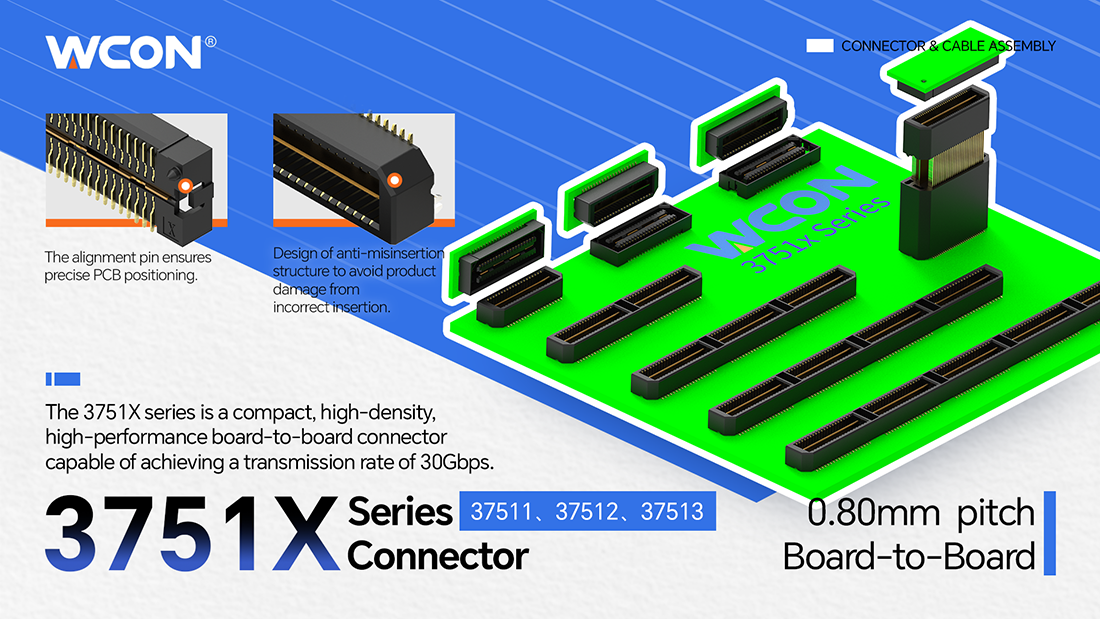

To meet the increasingly stringent demand for high-speed data transmission within devices, Weifeng Electronics has launched the 3751X Series 0.80mm pitch high-speed board-to-board connectors. This product features a compact design with small size and high density, boasting an high transmission rate of 30Gbps, covering models such as 37511, 37512, and 37513, precisely aligning with the market trends of device high-speed and miniaturization. It provides robust and reliable internal connection solution for applications in industrial automation, servers, and data centers.





Product Features

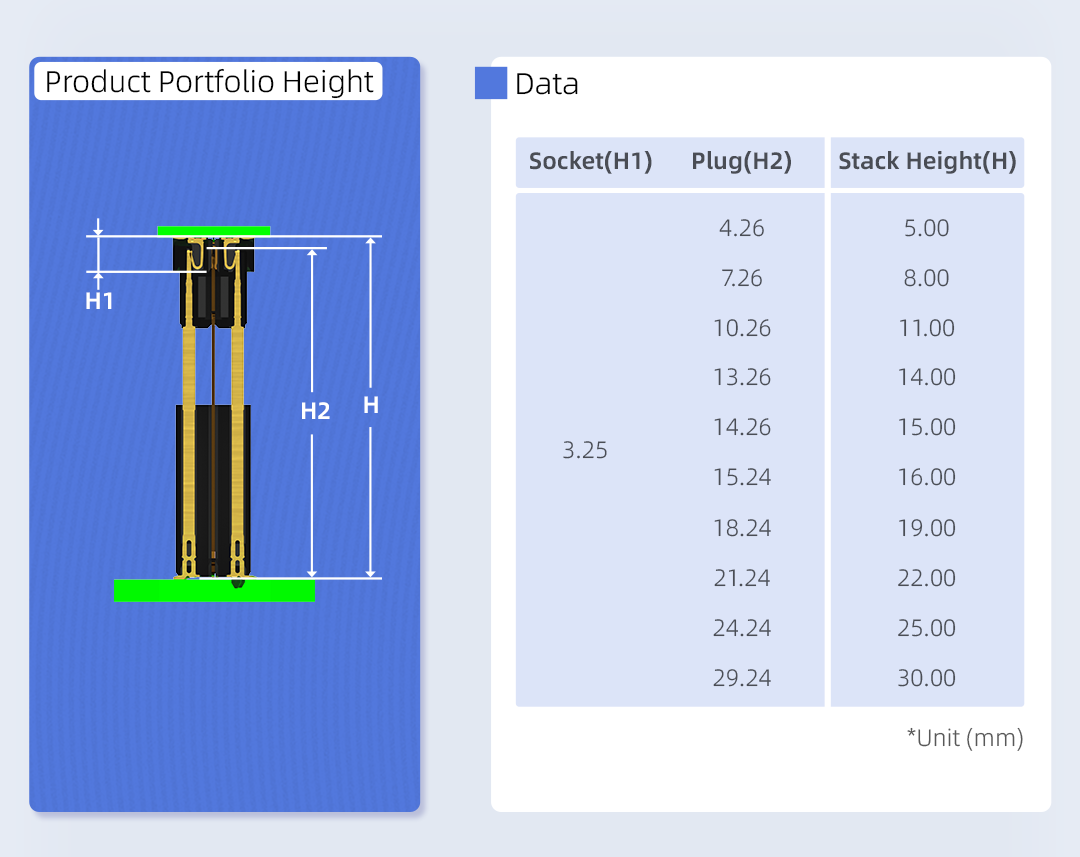

- Wide range of mating heights: 5 - 30mm;

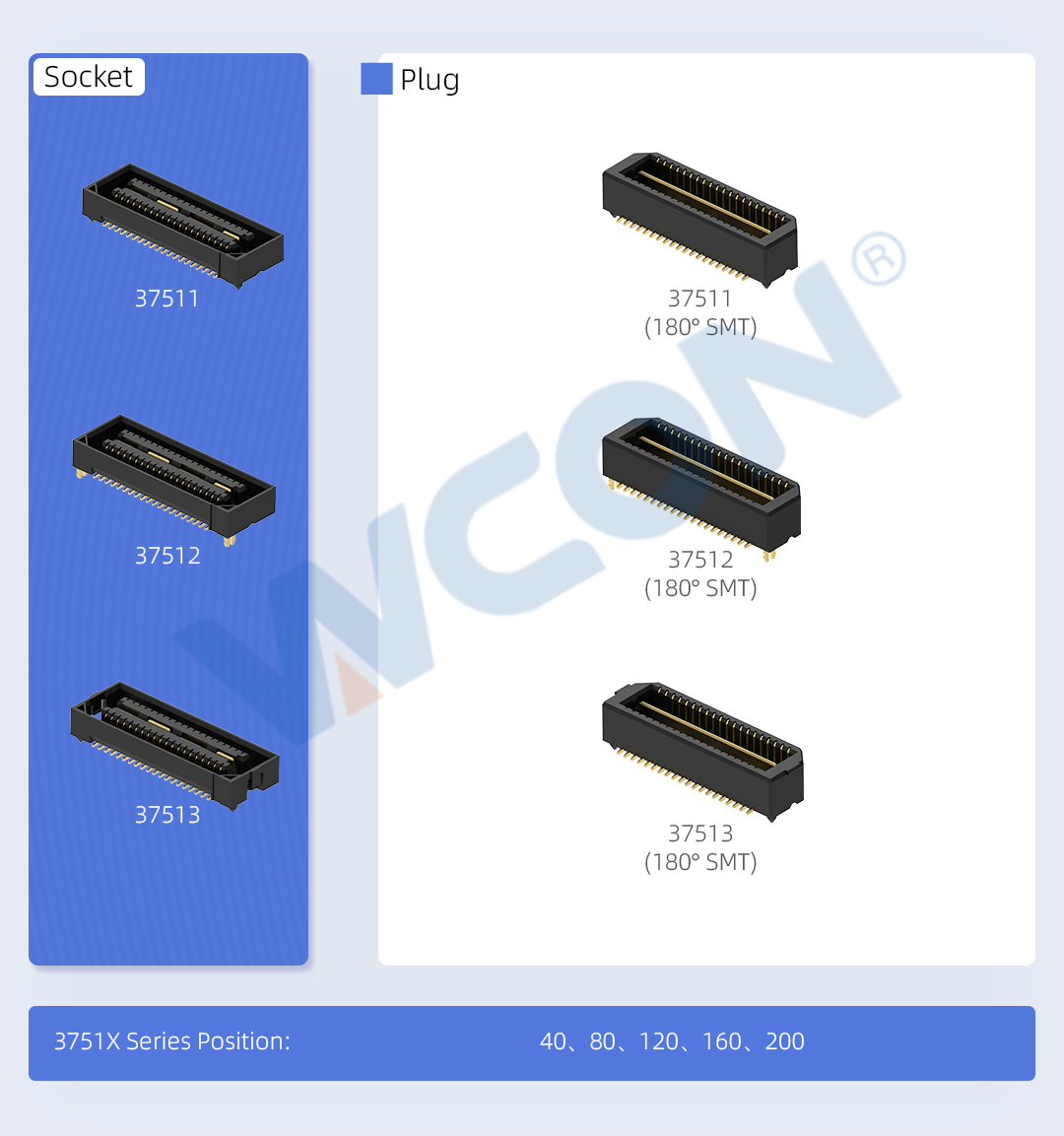

- Up to 200 pins;

-  Data transfer can reach up to 30Gbps;

-  Key layout design ensures correct connection.





Performance Parameters



-  Rated Current: 2.0A

- Rated Voltage: 225V AC

- Insulation Resistance: 5000MΩ Min

-  Withstand Voltage: 750V AC/minute

-  Operating Temperature: -55°C to +125°C



Standard



-  IEC 60512



Data sheet



Application



-  Industry: Automation equipment, industrial equipment, robots

- Server: Data center, storage device



Get Product Information



Download the detailed 3751X Series specification (PDF) and view the 3D model online for comprehensive reference for your project selection and design.



Get Professional Support



If you require assistance with product selection, customized application solutions, or technical support for the  3751X series, please feel free to contact our technical support team at any time.
