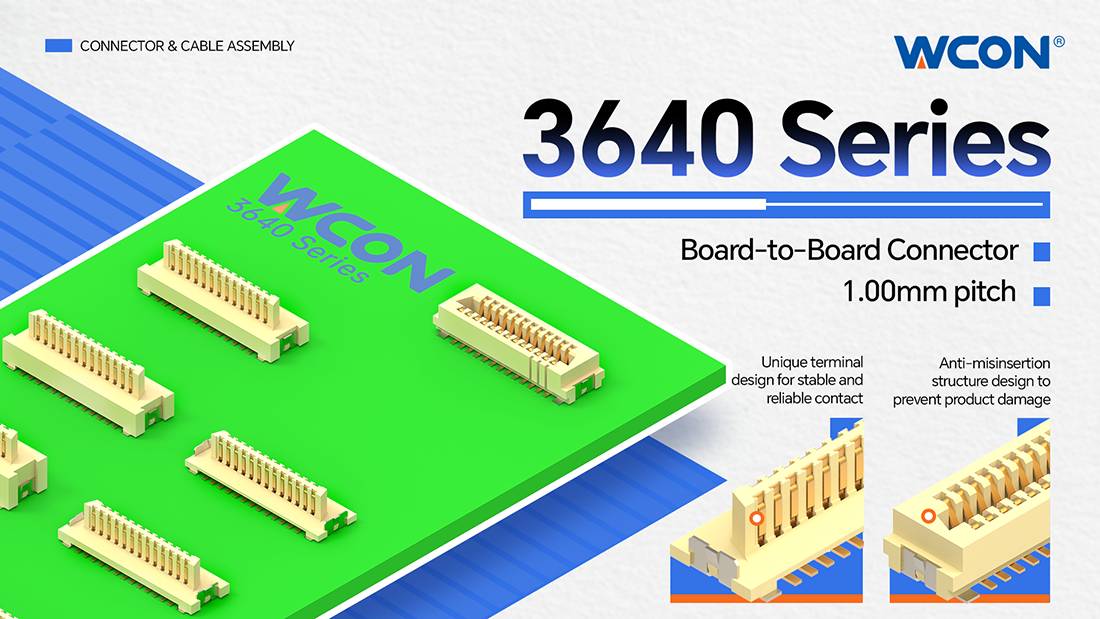

As industrial automation and communication equipment continue evolving toward higher density and modularization, they place greater demands on board-to-board connectors for superior space efficiency and signal integrity. The 3640 series is a 1.00mm pitch high-density surface mount board-to-board connector featuring a dual-row compact layout, delivering outstanding electrical performance and spatial adaptability.

This product ensures stable and reliable contact through a unique terminal design, incorporates metal retainers to enhance PCB retention force, and integrates anti-misinsertion structures to effectively prevent damage from misaligned connections. With stacking heights ranging from 4.15 to 7.52mm for flexible selection, it is widely applicable in high-reliability scenarios such as industrial control, humanoid robots, and network communication equipment.

Product Features

- Robust terminal design ensures secure mating

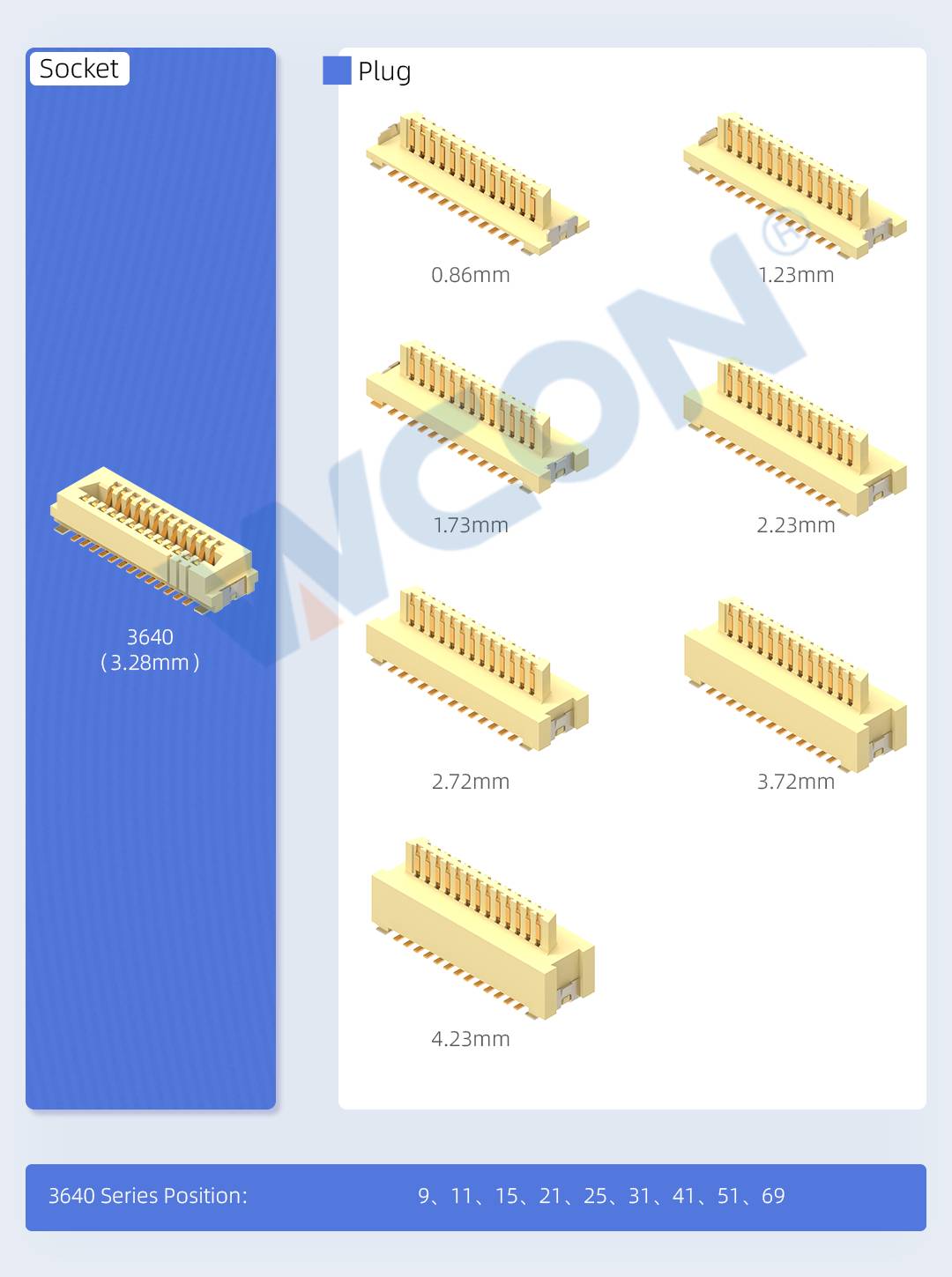

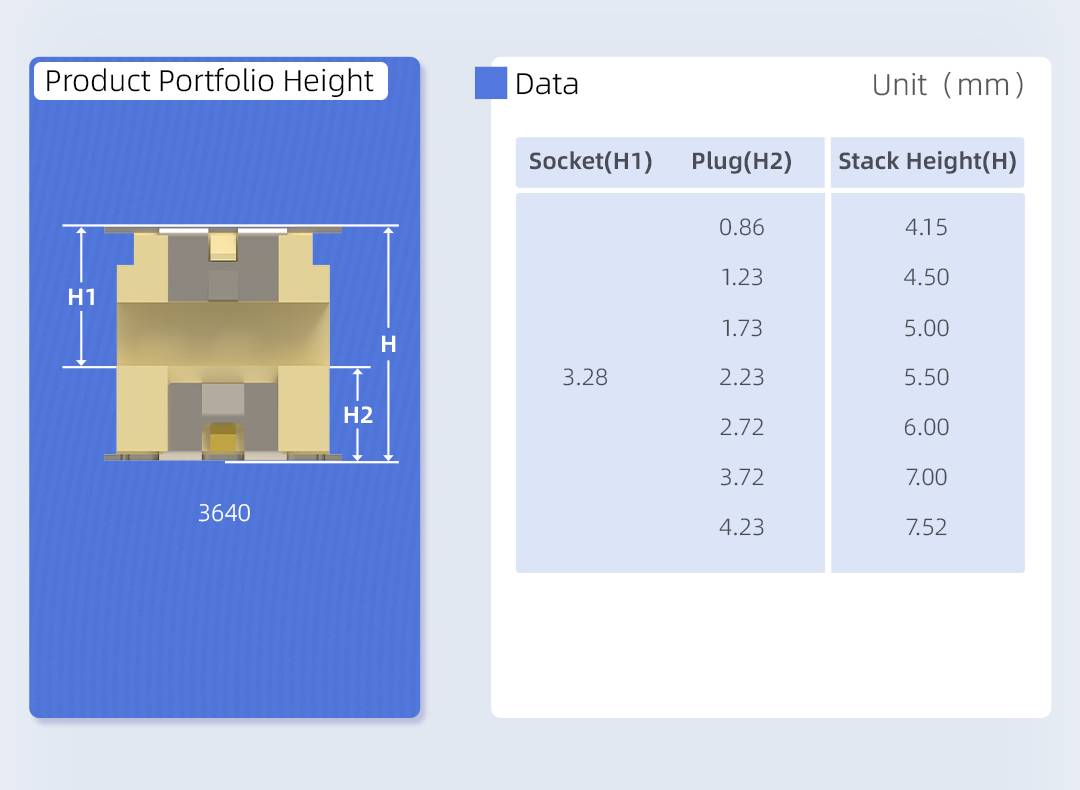

- Stack height: 4.15–7.52mm

- Polarized anti-misinsertion design ensures correct connection

Performance Specifications

- Rated current: 1.0A

- Rated voltage: 100V AC

- Insulation resistance: 500MΩ min

- Withstand voltage: 500V AC/min

- Operating temperature: -55°C to +130°C

Standards

- EIA 364

- IEC 60512

Sheet Data

Application

- Industrial: PLCs, robot control cabinets, servo drives

- Communications: Network communications, servers

- Medical: Instrumentation

Access Technical Resources

Download the detailed 3640 Series datasheet (PDF) and view the 3D model online to streamline your project selection and design process.
