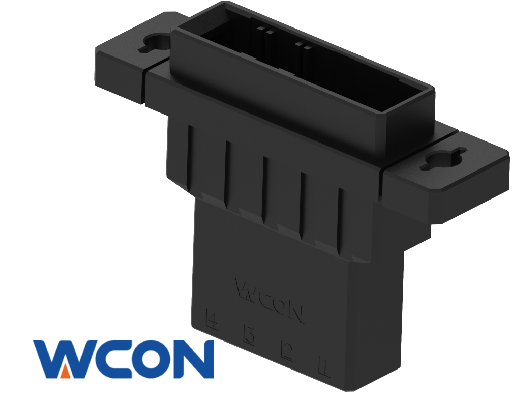

WD5085-1HGXXB00XX
5.08mm Pitch Wire To Wire Connector,Housing,Panel Housing,Single Row,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 600 V/AC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 12 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 10 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 2200 V/AC,V/DC | Packaging | PE Bag | |
RoHS
Compliant
REACH
Compliant
