P3FRA-XXXXXXXXXXXXA1

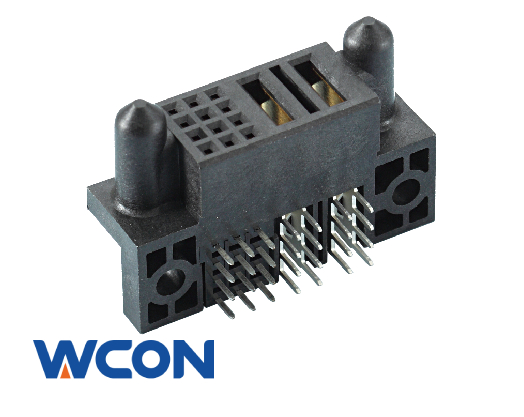

PSP Connector,Female,Power+Signal,Horizontal,Through Hole,Spacing A,Gold or Tin over nickel,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | Power：600V Signal：50 V/AC | Operation Temperature | -20°C - +105°C | |
| Rated Current | Power：30A Signal：2.5 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | Power：0.7mΩ Max Signal：20 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | Power：10000MΩ Max Signal：500 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | Power：2500V/AC Signal：1000 V/AC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
PSP Connector,Female,Signal+Power,Vertical,Through Hole,Spacing A,Gold or Tin over nickel,Black
