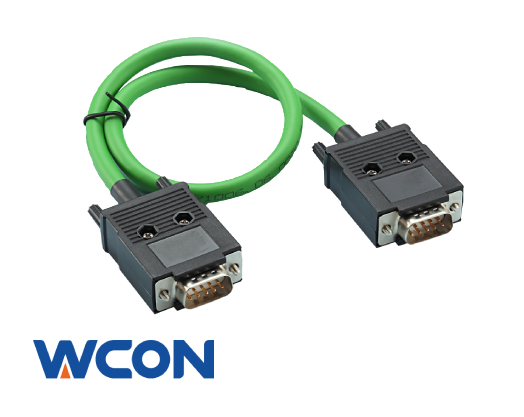

C9700-XX02XXXX-XXX
High D-SUB Connector,Male,Cable Assembly,Both ends Process,22~30 AWG,Gold or Sn over Ni
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 350 V/AC | Operation Temperature | -55°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Brass | |
| Contact Resistance | 2 mΩ Max | Insulator Material | PBT | |
| Insulation Resistance | 10 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 300 V/AC | Packaging | PE Bag | |
RoHS
Compliant
REACH
Compliant
-
