73040-4MR034CBS4DAXW

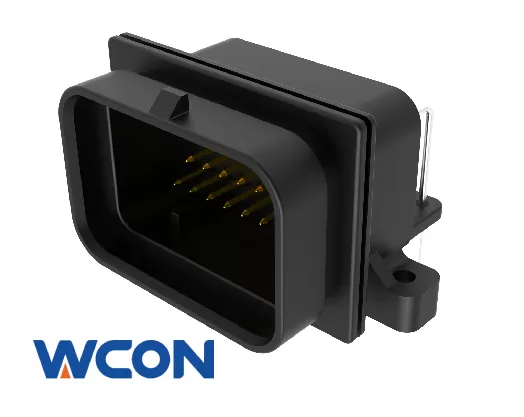

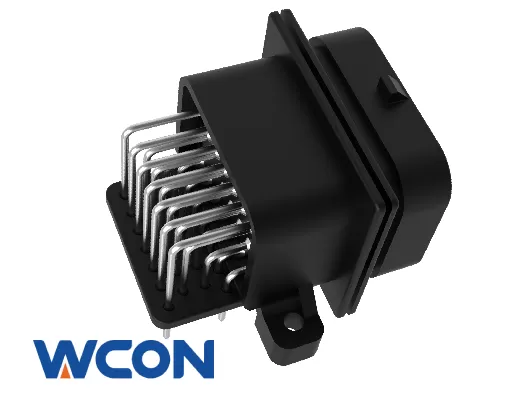

3.00mm Pitch,Automotive Connector,Male,Horizontal,Through Hole,34 Circuits,Gold Plating,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 7 AMP | Contact Material | Brass | |
| Contact Resistance | 15 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | 100 MΩ Min | Contact Plating | Au | |
| Withstand Voltage | 1000 V/AC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
3.00mm Pitch,Housing,Positive Lock, 34 Circuits
-

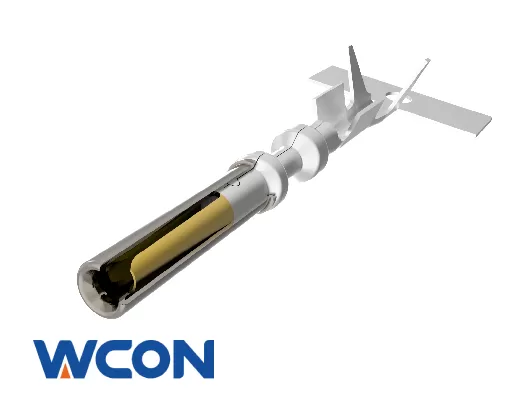

3.00mm Pitch,Female contact
