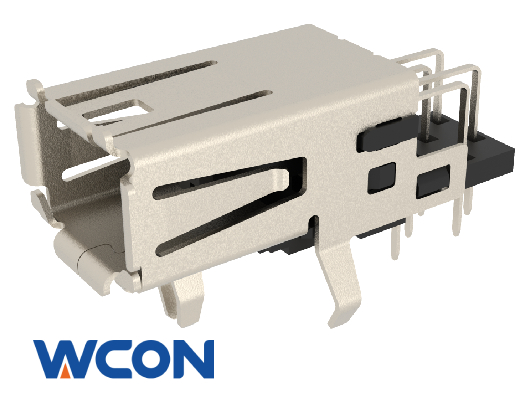

6361-08FRXXDXNA1

1.27mm Pitch Micro I/O Receptacle Connector,Female,Horizontal,Through Hole,8 Circuits,Gold or Tin over nickel,Black,TYPE Ⅰ,W/O Post
Inquiry Now Register
/assets/upload/2023-12-26/6361-08FRXXDXNA1.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 50 V/AC Operation Temperature -40°C - +85°C
Rated Current 0.5 AMP Contact Material Copper Alloy
Contact Resistance 40 mΩ Max Insulator Material LCP
Insulation Resistance 500 MΩ Min Contact Plating Au&Sn
Withstand Voltage 1000V AC Between Termonal And Terminal 1500V AC Betwee Termonal And Shell V/AC Packaging Tray

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number

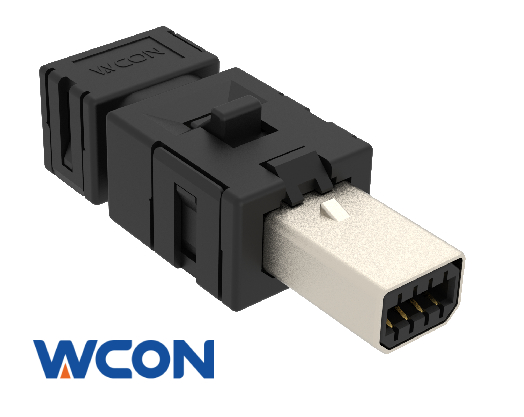

  • 1.27mm Pitch Micro I/O Cabe Assembly Connector IDC Type,Male,8 Circuits,Gold or Tin over nickel,Black
    6362-08MUISXMCBAX
  • 1.27mm Pitch Micro I/O Cable Assembly Connector Solder Type,Male,8 Circuits,Gold or Tin over nickel,Blac
    6362-08MXHSXMCBA1
  • 1.27mm Pitch Micro I/O Cable Assembly Connector Solder TYPE.Long Push Rod,Male,8 Circuits,Gold or Tin over nickel,Blac
    6362-08MXHSXMCBA2
