6340-2XXMRSXMWT01

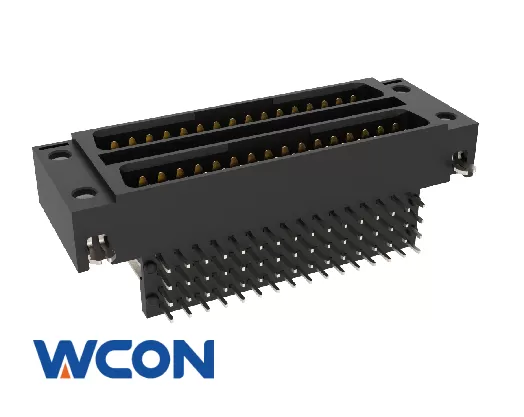

DFCN Connector,Male,Horizontal,Through Hole,Double-Deck,Standerd Type,With Metal Harpoon and M2.6 Nut,Gold or Tin over nickel,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -55°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 15 mΩ Max | Insulator Material | PBT | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | Tube | |
ROHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
DFCN Connector,Housing,Dual Row,Black
