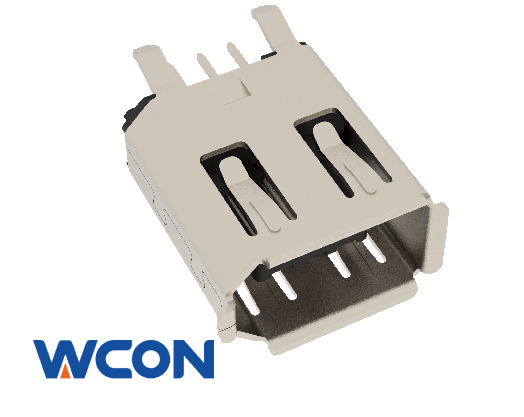

6130-06MSSXDBNA2
2.00mm Pitch SIC Connector,Male,Vertical,6 Circuits,Gold or Tin over nickel,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 40 V/AC | Operation Temperature | -40°C - +85°C | |
| Rated Current | 1 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 30 mΩ Max | Insulator Material | LCP | |
| Insulation Resistance | 100 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
2.00mm Pitch SIC Connector,Female,Solder Type Assemble,6 Circuits,Gold or Tin over nickel,Gray
