5211-XXDBXXBW01

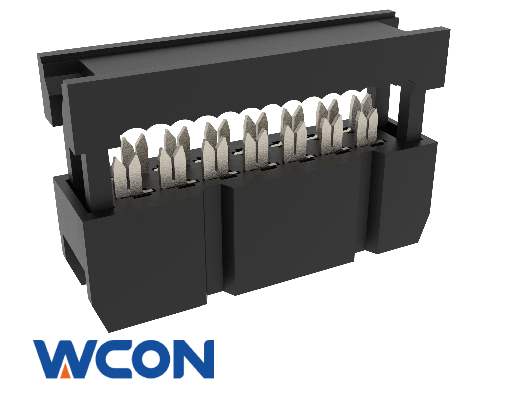

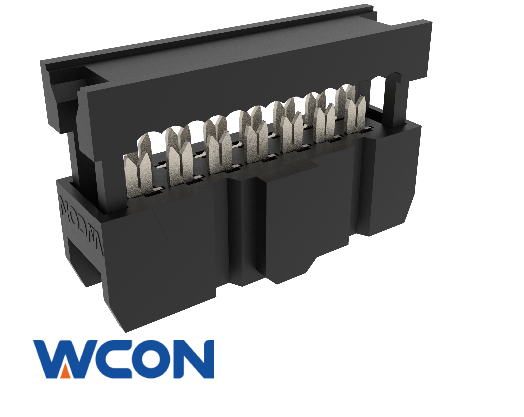

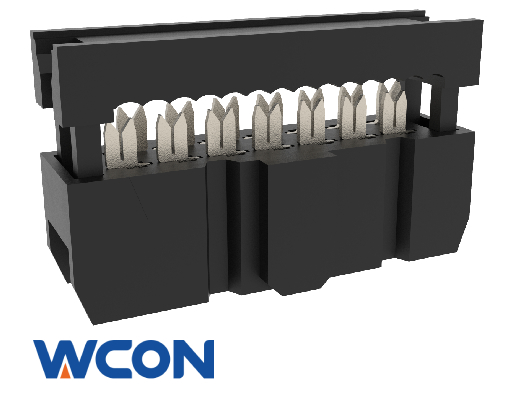

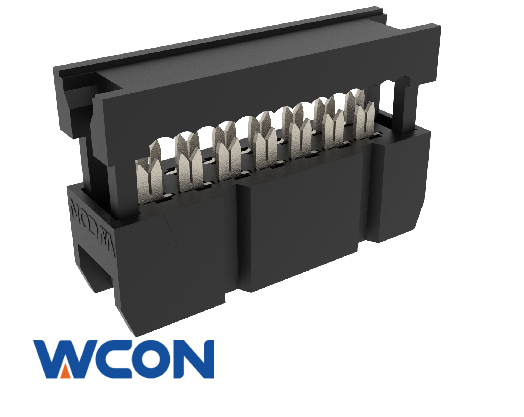

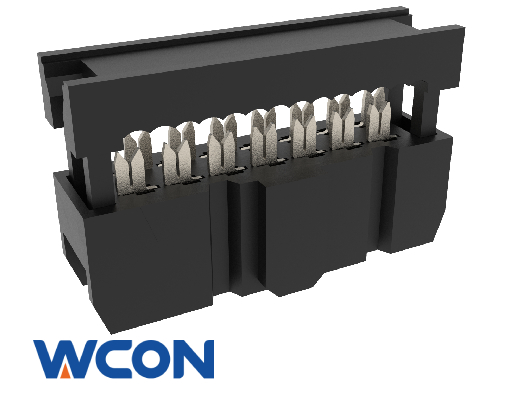

2.54mm Pitch IDC Connector,Socket,Double Row,Two-piece,Gold or Tin over nickel
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Phosphor Bronze | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PBT | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1000 V/AC,V/DC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
2.54mm Pitch Box Header Connector,Gold or Tin over Ni
-
2.54mm Pitch Box Header Connector,Gold or Tin over Ni
