37201-PMXXXXXXX11

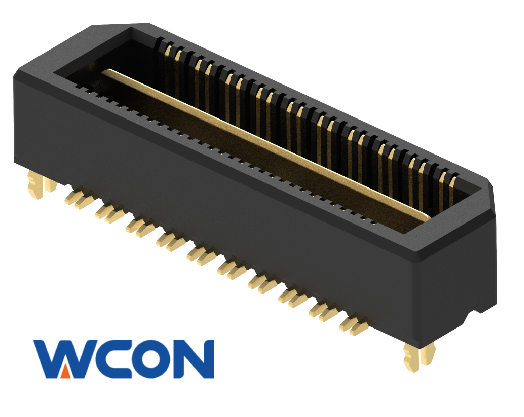

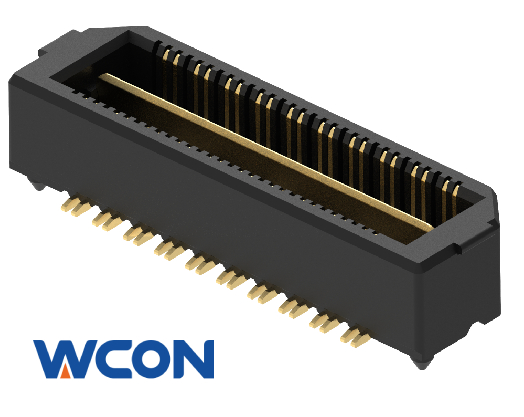

high-speed Board To Board Connector,Male,Surface Mount,Dual Row,Gold plating,With Post, Differential Pair Signaling,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 175 V/AC | Operation Temperature | -55°C - +125°C | |
| Rated Current | 2 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 30 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 5000 MΩ Min | Contact Plating | Au | |
| Withstand Voltage | 675 V/DC,V/AC | Packaging | Tube,Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
