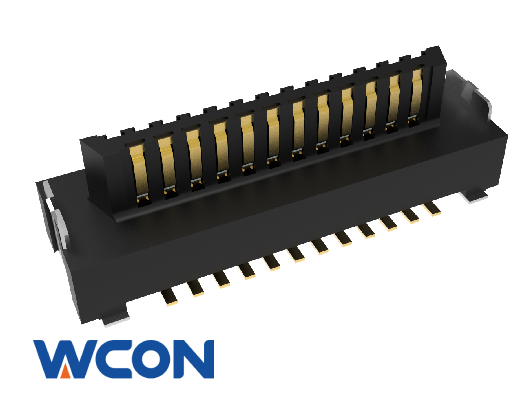

3640-PXXX-027XXR01

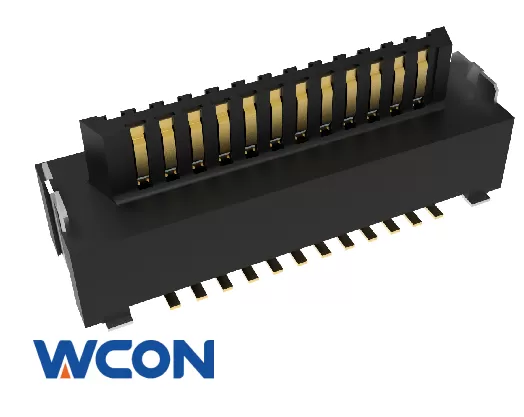

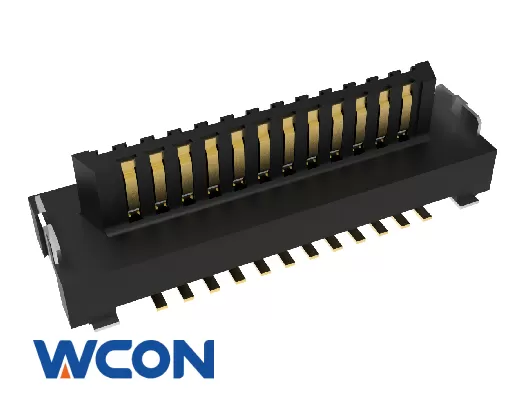

Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,2.72mm Height,Gold plating,With Post,With reinforcing metal fitting,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 100 V/AC | Operation Temperature | -55°C - +130°C | |
| Rated Current | 1 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 30 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au | |
| Withstand Voltage | 500 V/AC,V/DC | Packaging | Reel,Tube | |
ROHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-

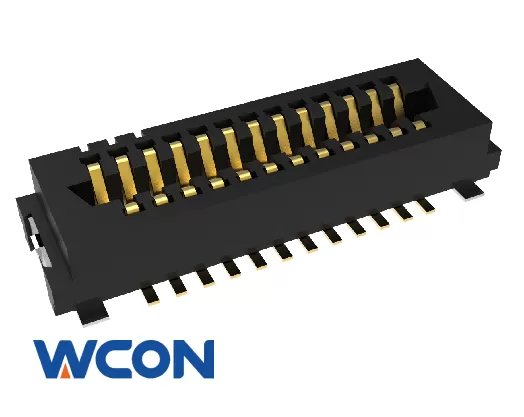

Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,3.28mm Height,Gold plating
