3410-2XXBMMXXWAX1

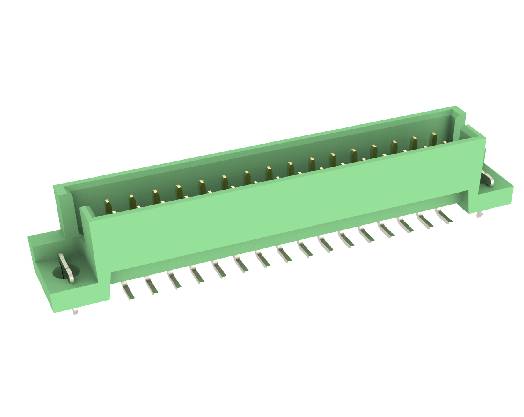

DIN 41612 Connector,Male,Vertical,Surface Mount,Dual Row,Gold or Tin over nickel,Q-Type
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -55°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Brass | |
| Contact Resistance | 30 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
DIN 41612 Connector,Male,Vertical,Through Hole,Dual Row,Gold or Tin over nickel
