2135T-2XXSXXCYNX1

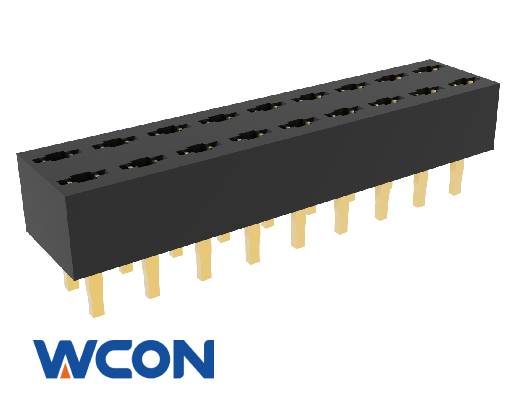

Female Header Connector,Vertical,Through Hole,Dual Row,3.50mm Height,Gold or Sn over nickel,Black
Inquiry Now Register
/assets/upload/2024-01-25/2135T-2XXSXXCYNX1.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 250 V/AC Operation Temperature -40°C - +105°C
Rated Current 3 AMP Contact Material Phosphor Bronze
Contact Resistance 20 mΩ Max Insulator Material PA9T or PBT
Insulation Resistance 1000 MΩ Min Contact Plating Au&Sn
Withstand Voltage 1000 V/AC Packaging Tube

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • Pin Header Connector,1.50mm Height,Gold or Tin over nickel,Black
    1115-series
  • Pin Header Connector,2.00mm Height,Gold or Tin over nickel,Black
    1220-series
  • Pin Header Connector,2.20mm Height,Gold or Tin over nickel,Black
    1125-series
