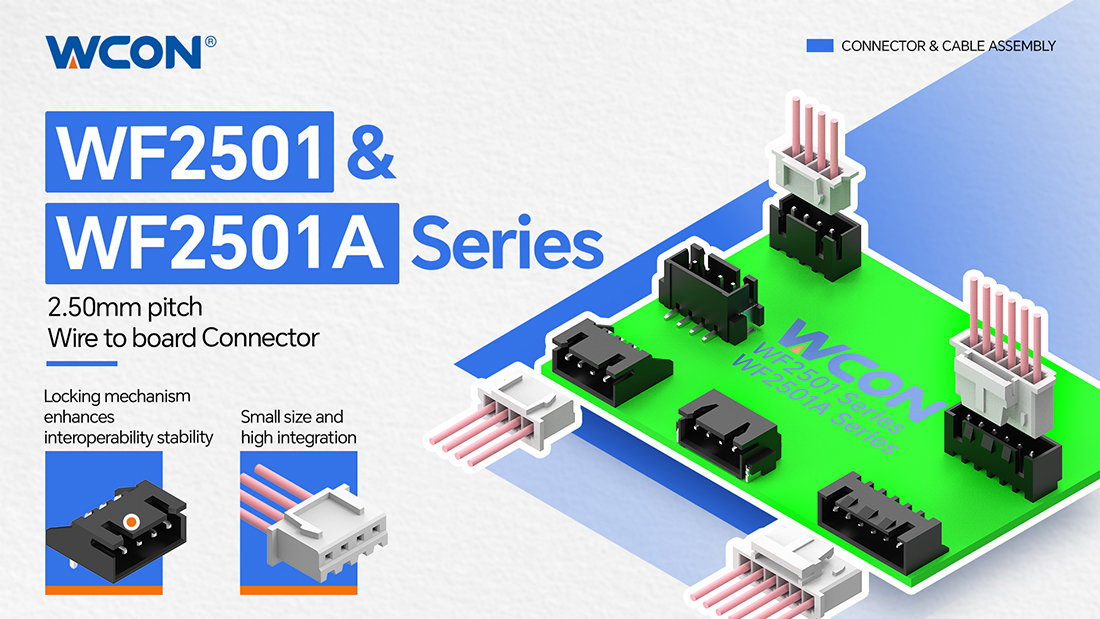

As industrial equipment rapidly evolves toward intelligent, high-integration solutions, signal connectors must meet increasing demands for transmission efficiency and space optimization. The WF2501 series from WCON Electronics delivers a 2.50mm pitch wire-to-board connector that combines high-density layout with high-performance transmission characteristics, ensuring stable and reliable signal transmission and integrity.

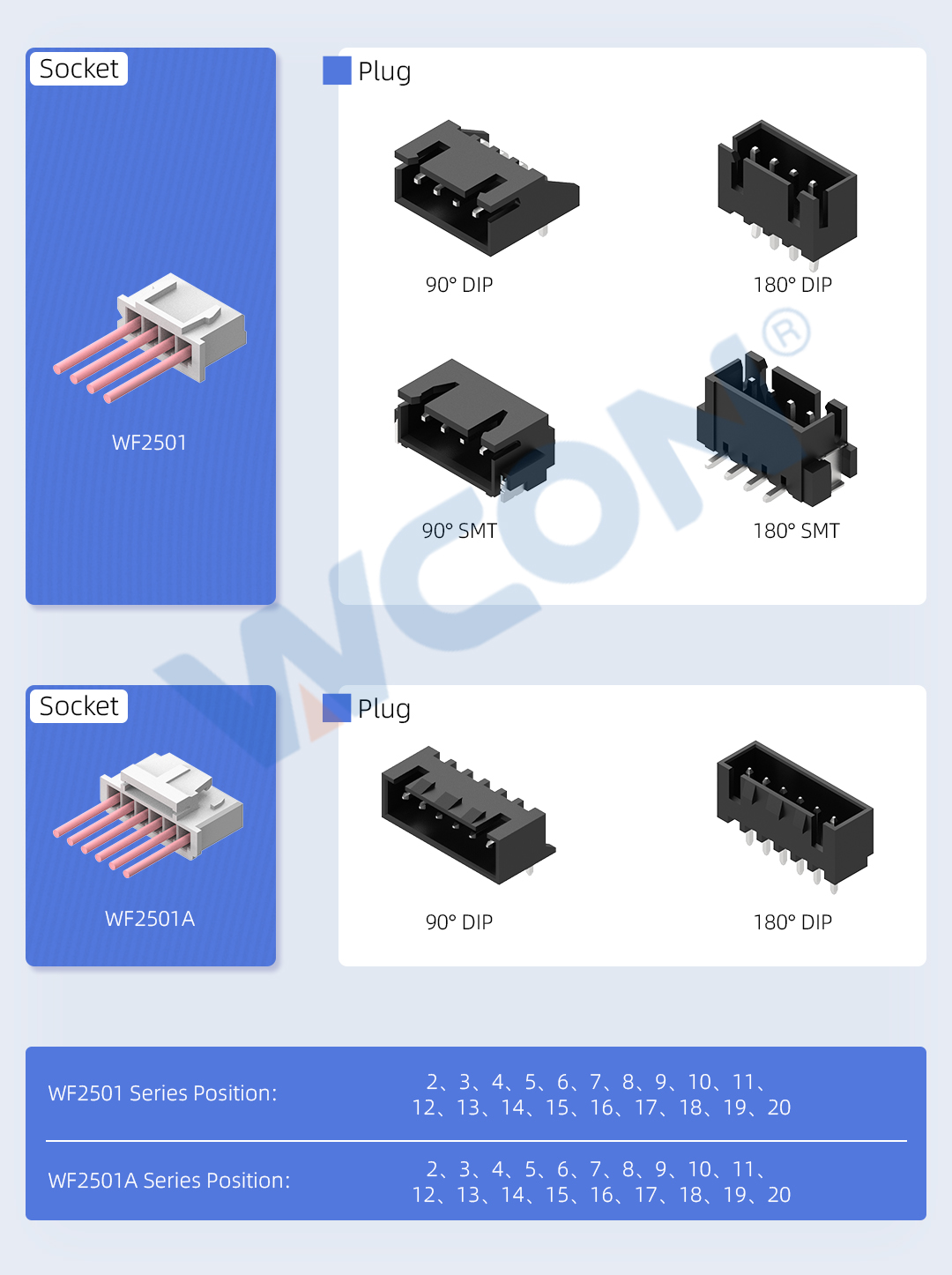

The board side offers horizontal and vertical mounting orientations, with optional DIP or SMT soldering methods to flexibly accommodate different mating angles and manufacturing requirements. Its compact design achieves a small footprint and high integration. Spring-loaded terminals enhance contact reliability, while a locking mechanism ensures secure connections. This series is widely applicable in industrial automation and consumer electronics, providing efficient and reliable signal interconnection solutions for equipment.
