WF2018 Series 2.00mm Pitch wire-to-board Connectors: Slim, Automotive-Grade Solutions Empowering the Automotive and Industrial Sectors
To meet the automotive market’s stringent requirements for high-density layouts and space-optimized designs, WCON Electronics has launched the WF2018 series of 2.00mm-pitch connectors. Featuring a lightweight, slim design, crimp-type wire-to-board connections, and an integrated anti-mismating mechanism, these connectors offer high mechanical retention force and vibration resistance, ensuring stable signal transmission.

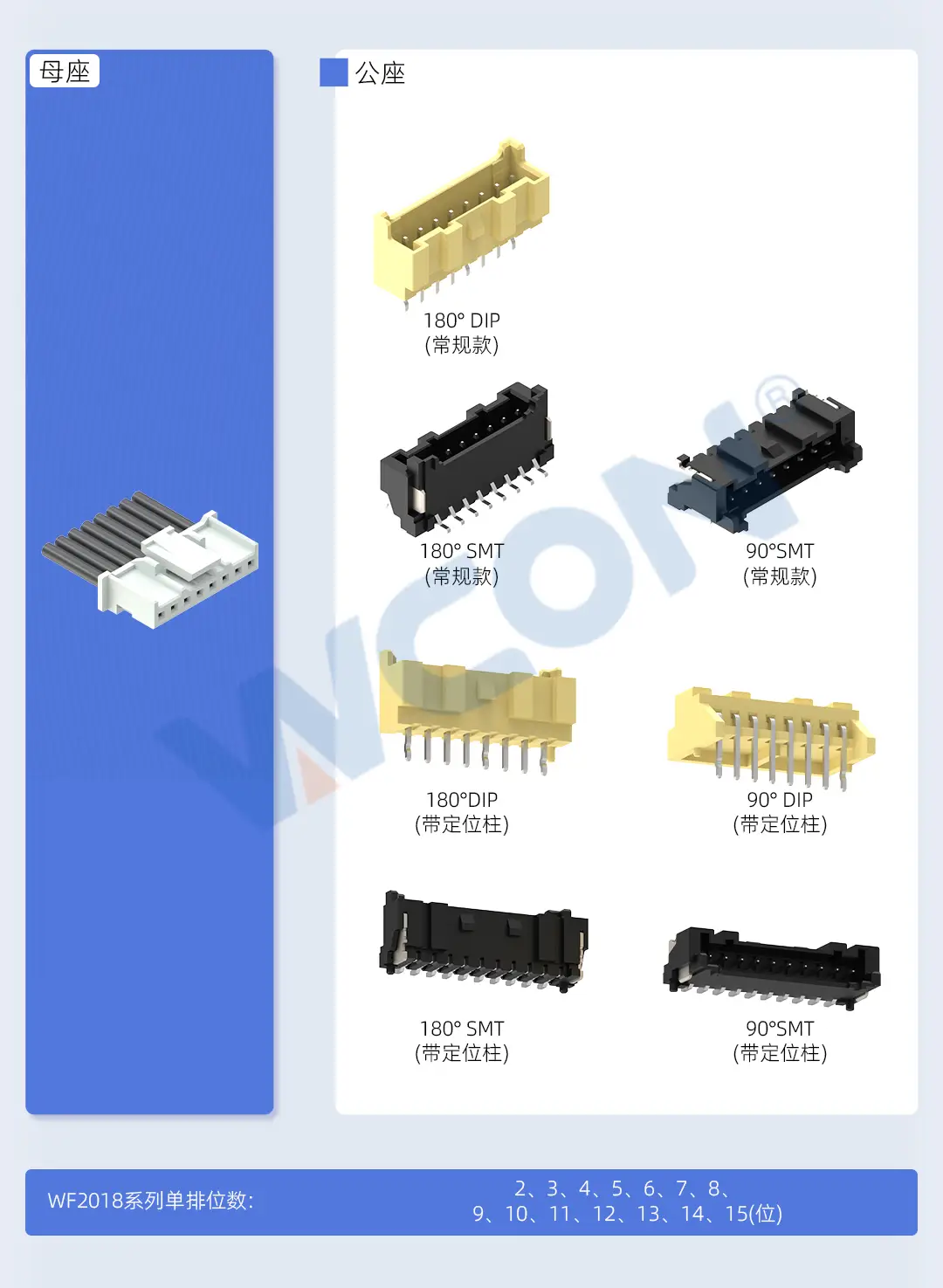

This series supports both vertical and horizontal mounting, enabling multi-dimensional connection adaptability. Integrated board-end retaining tabs enhance solder adhesion, meeting reliability requirements under complex operating conditions. Suitable for the automotive and industrial automation sectors, this series provides durable and stable electrical connection solutions for harsh environments.
| Product Features | Performance Specifications |
| - Lightweight design saves space; | - Rated Current: 3A |
| - Latching connection ensures safety and stability; | - Rated Voltage: 250V |
| - Positioning pin design ensures precise installation; | - Contact Resistance: 20 mΩ Max |
| - Horizontal and vertical connections for flexible configuration. | - Insulation Resistance: 1000 MΩ Min |
| - Withstand Voltage: 800 V AC for 1 minute | |
| - Operating Temperature: -40°C to +105°C | |
| - Applicable Wire Gauge Range: #28 AWG to #22 AWG; |
| Standards | Applications |
| - USCAR-2 | - Steering wheel switches, vehicle onboard chargers |
| - QC/T 1067 | -Industrial automation control, industrial instrumentation and equipment |
