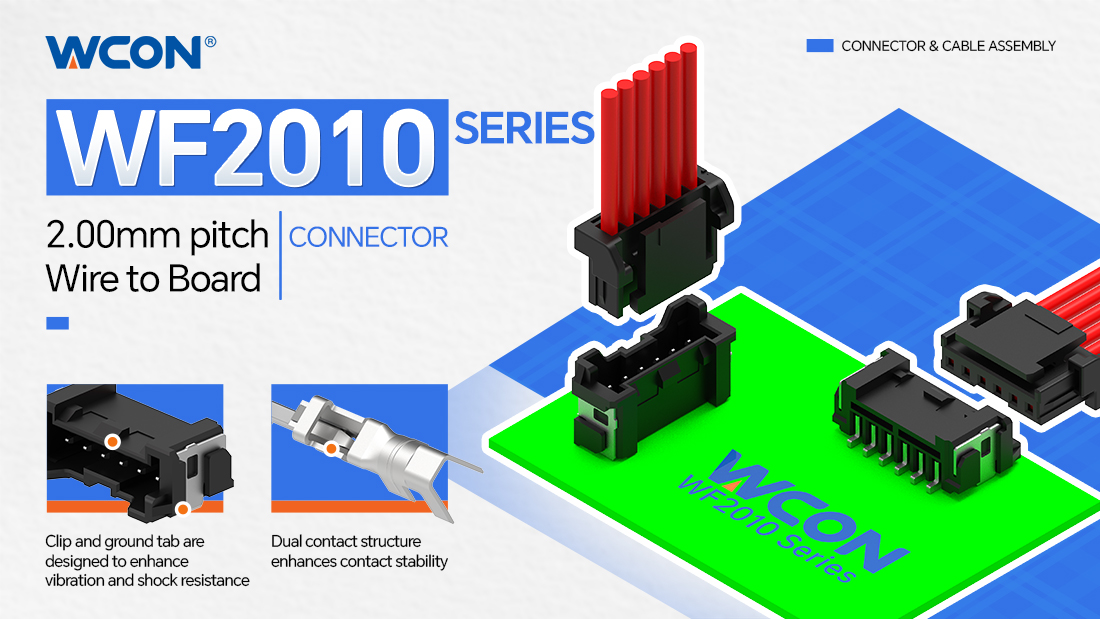

WF2010 Series Connectors: 2.00mm Pitch, High Density and Vibration Resistant
2026-01-15 14:23
To meet the stringent demands for signal connection reliability in automotive electronics and industrial equipment operating under vibration and shock conditions, Weifeng Electronics introduces the WF2010 series—a high-density wire-to-board connector with a 2.00mm pitch. Featuring a dual-contact terminal design, it significantly enhances contact stability and delivers superior vibration resistance and shock tolerance. Its compact structure enables small footprint and high-density layouts, supporting flexible and diverse mounting options.
This product is suitable for automotive electronic auxiliary systems, industrial control, drone transportation, and network service equipment, providing stable and reliable signal transmission solutions for harsh environments.
| Product Highlights | Performance Specifications |
| - Polarized key design prevents misinsertion. | - Rated Current: 4.7A |
| - Dual-contact design enhances connection stability. | - Rated Voltage: 250V AC |
| - Secure latching mechanism ensures reliability under vibration and shock. | - Insulation Resistance: 1000MΩ Min |
| - Withstand Voltage: 1000V AC/Min | |
| - Operating Temperature: -40°C to +125°C | |
| - Applicable wire gauge: 20~26 AWG |
| Standards | Applications |
| - USCAR-2 | - Automotive ADAS |
| - QCT 1067 | - Industrial Control Systems & Automation |
