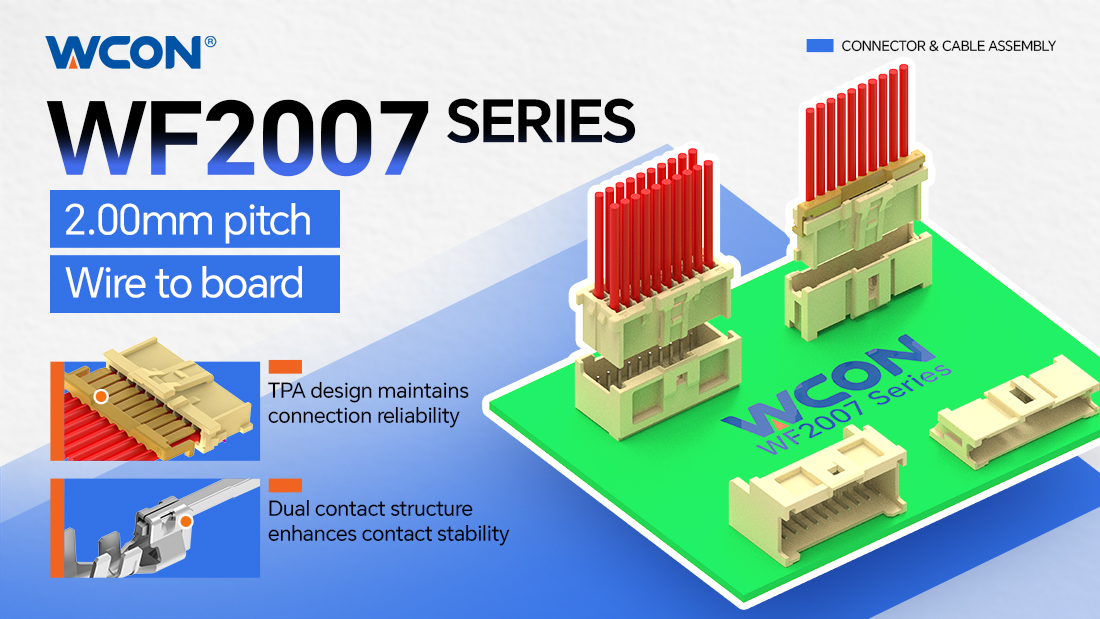

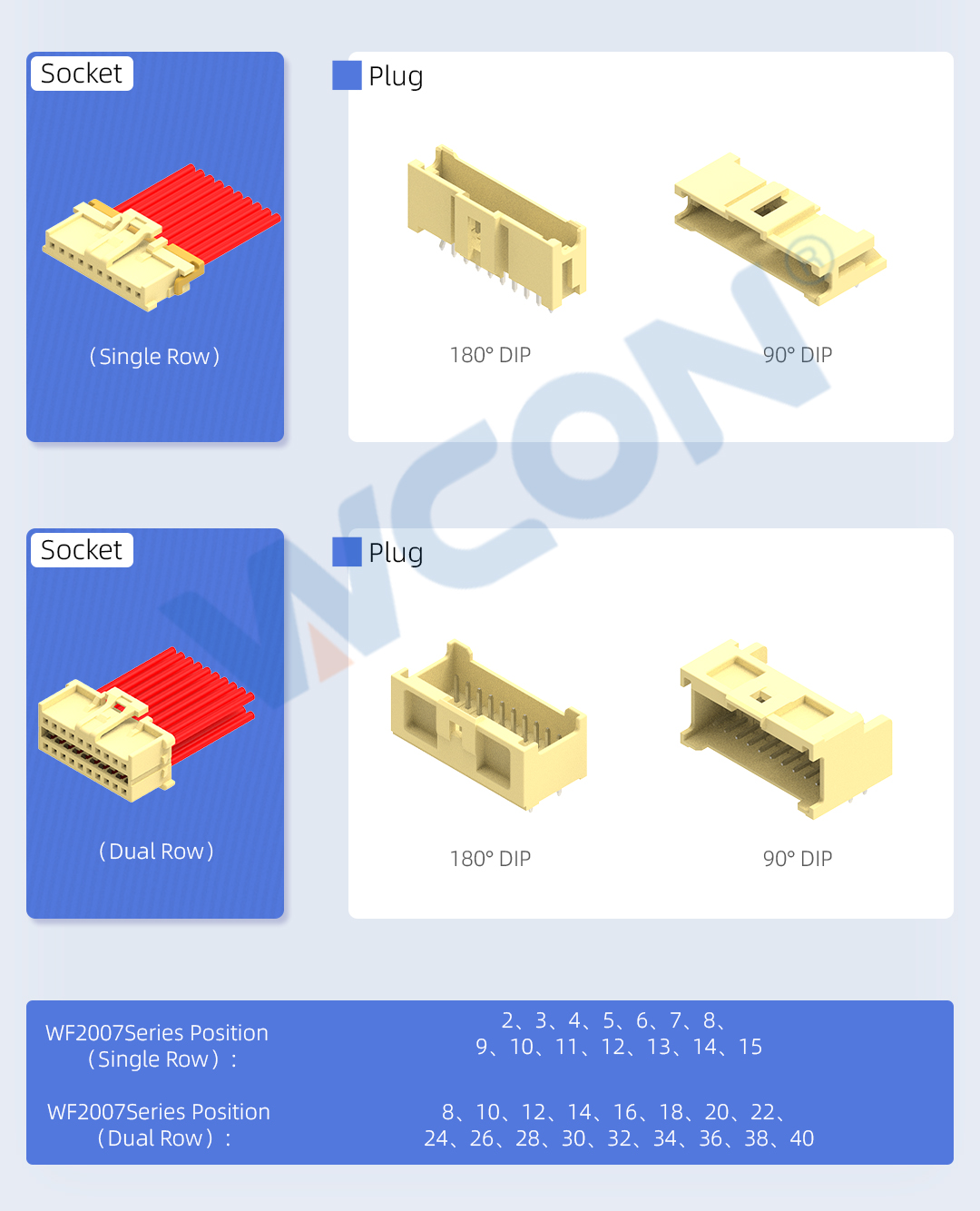

As automotive electronics and industrial automation systems demand ever-greater signal transmission reliability, high-density, vibration-resistant connectors with fine pitch have become critical. WCON Electronics' WF2007 series is a 2.00mm pitch high-density connector featuring single-row and dual-row designs for compact applications. Wire-end options include TPA terminals with secondary locking mechanisms, while dual-contact terminal design ensures stable connections.

The WF2007 series features a secure pressure-lock mechanism and a positive latch design, ensuring excellent mating retention force to withstand vibration and shock. Supporting flexible installation options, this series enables high-density layouts in confined spaces, providing a highly reliable and space-saving wire-to-board solution. It is ideally suited for demanding applications including automotive lighting, Advanced Driver Assistance Systems (ADAS), and industrial control units.

Product Feature

- TPA design for stable signal connection;

- Locking mechanism for vibration and impact resistance;

- Dual-contact design for secure connection;

- Anti-misinsertion design ensures proper connection.

Performance Specifications

- Rated Current: 3A

- Rated Voltage: 250V AC

- Insulation Resistance: 1000MΩ Min

- Withstand Voltage: 1000V AC/Min

- Operating Temperature: -40°C to +105°C

Standard

- EIA-364

- USCAR-2

- IEC60512

- IEC60068

Data Sheet

Application

- Industrial Automation

- Industrial Equipment
