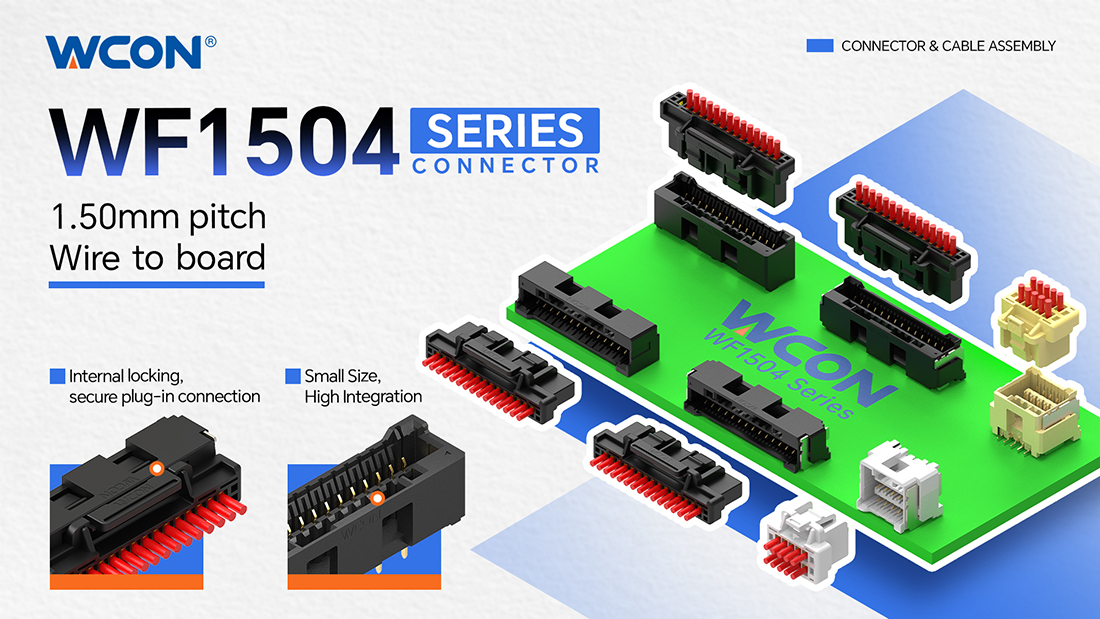

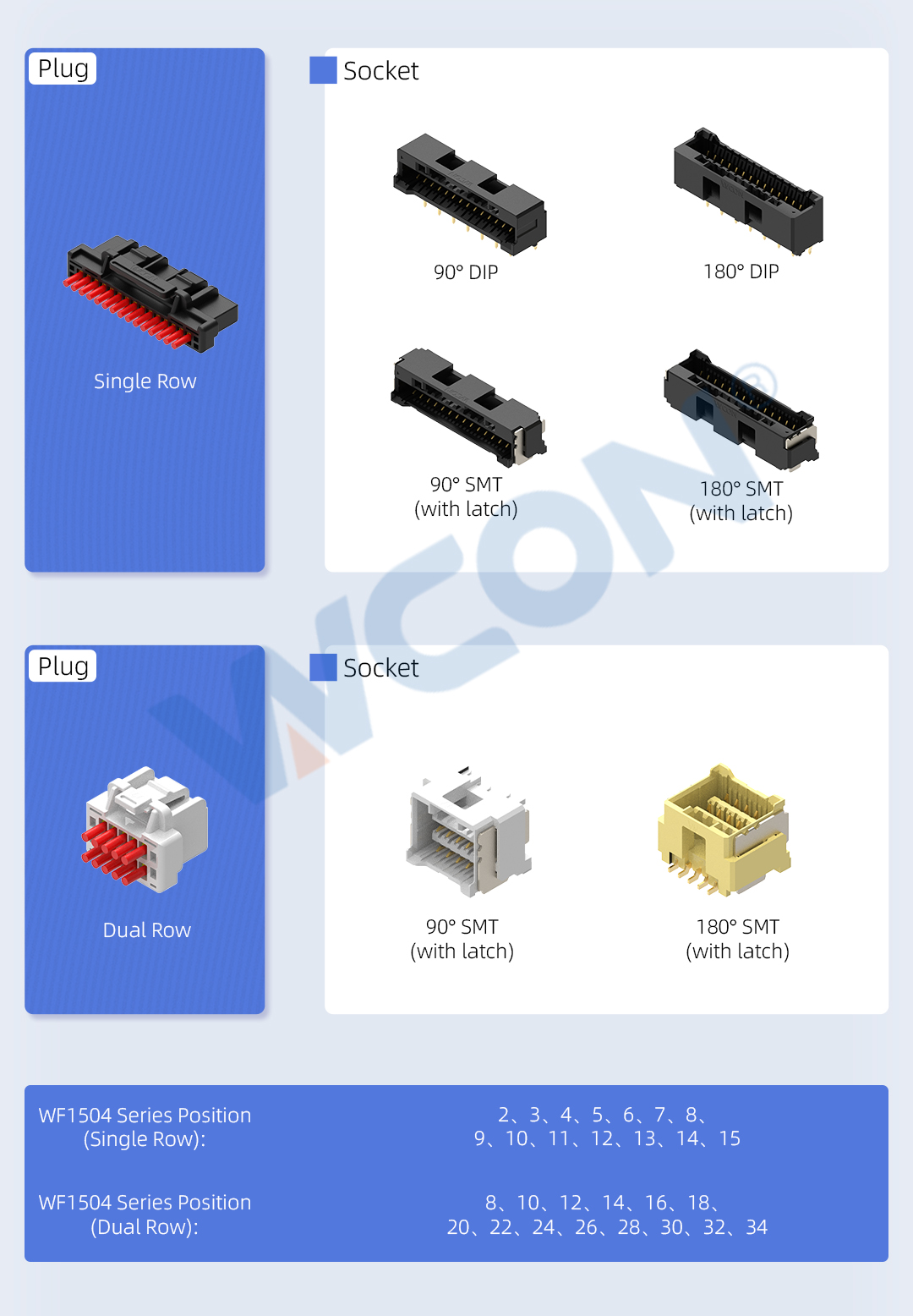

As industrial equipment and new energy vehicles evolve toward higher integration density and greater complexity, the demand for connectors that deliver high reliability, low insertion force, and vibration-resistant locking within limited spaces is becoming increasingly critical. WCON Electronics’ WF1504 series is a 1.50mm-pitch wire-to-board connector available in single-row and dual-row configurations, as well as surface-mount and through-hole versions. It supports both vertical and right-angle mounting, offering flexible adaptation to various mating angles.

Featuring an internal locking mechanism with an audible click to confirm secure engagement, it effectively prevents loosening caused by vibration or impact; The unique K-pin terminal and two-point contact design on the DIP side reduce contact resistance, prevent terminal bending, and ensure high contact reliability; the SMT side enhances PCB retention through reinforced metal tabs. This series is suitable for space-constrained applications with high mechanical requirements, delivering exceptional mating precision and durability while simplifying assembly.
