3616 Series Connector: 0.8mm pitch, enabling high-density interconnection and flexible stacking
2026-01-16 16:09

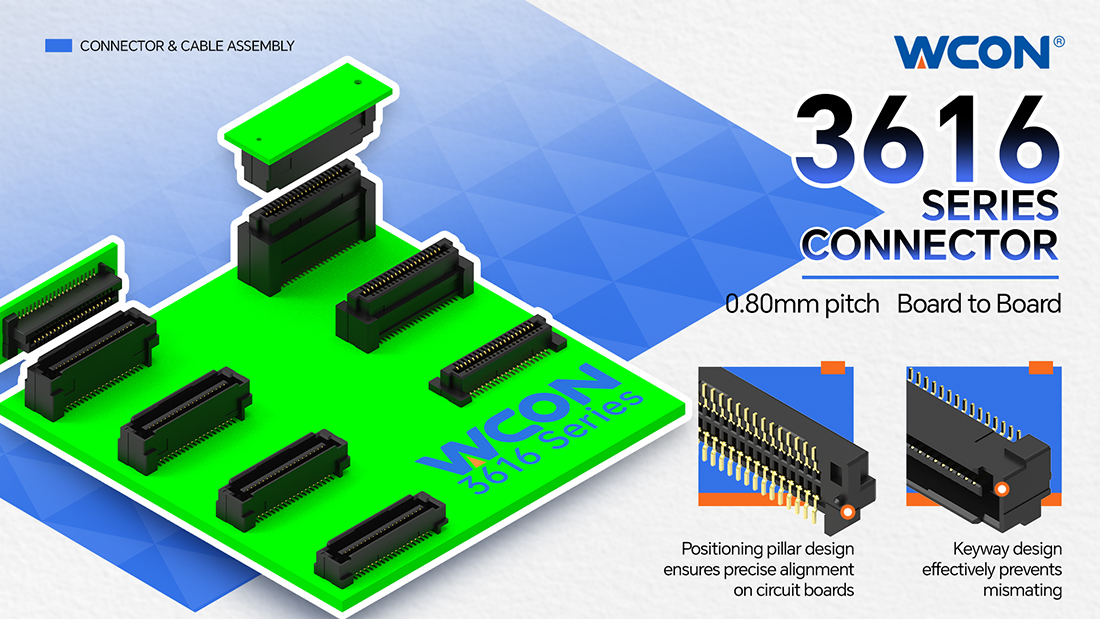

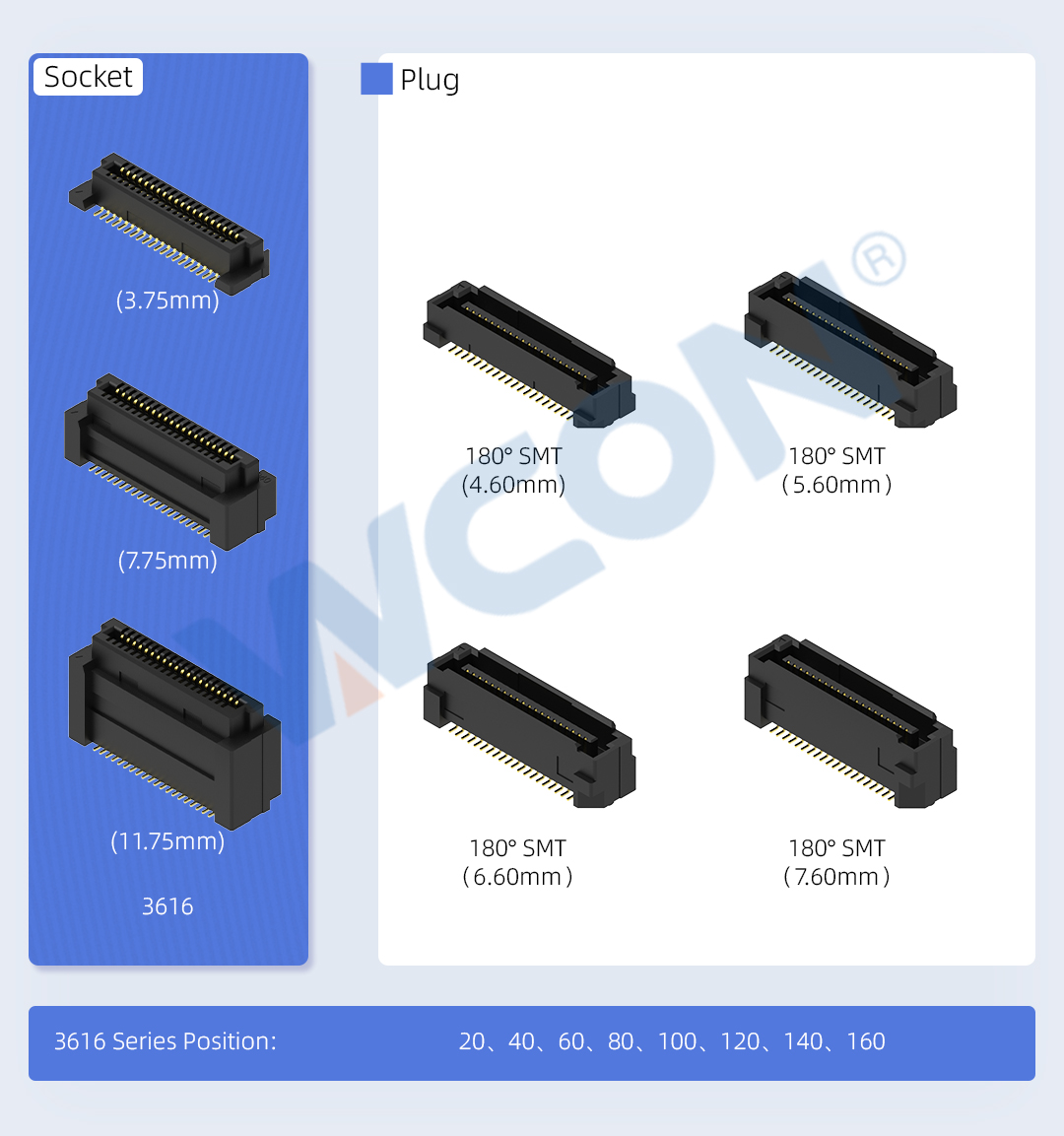

To meet the evolving mechanical and design complexities of modern modular equipment, connectors must deliver both high-density layout and configuration flexibility within constrained spaces. The 3616 series launched by WCON Electronics is a board-to-board connector with a pitch of 0.80mm, featuring a universal mating interface and offering up to 12 stacking height options. With a maximum of 160 pins, it can flexibly adapt to constantly changing structural designs.
This series of connectors is suitable for high-density interconnection scenarios such as automation equipment and industrial computers, providing reliable and scalable connection solutions for compact devices.
| Product Highlights | Performance Specifications |
| - Polarized key design to prevent misconnection; | - Rated current: 0.5A |
| - Positioning column design ensures stable connection; | - Rated voltage: 50V AC |

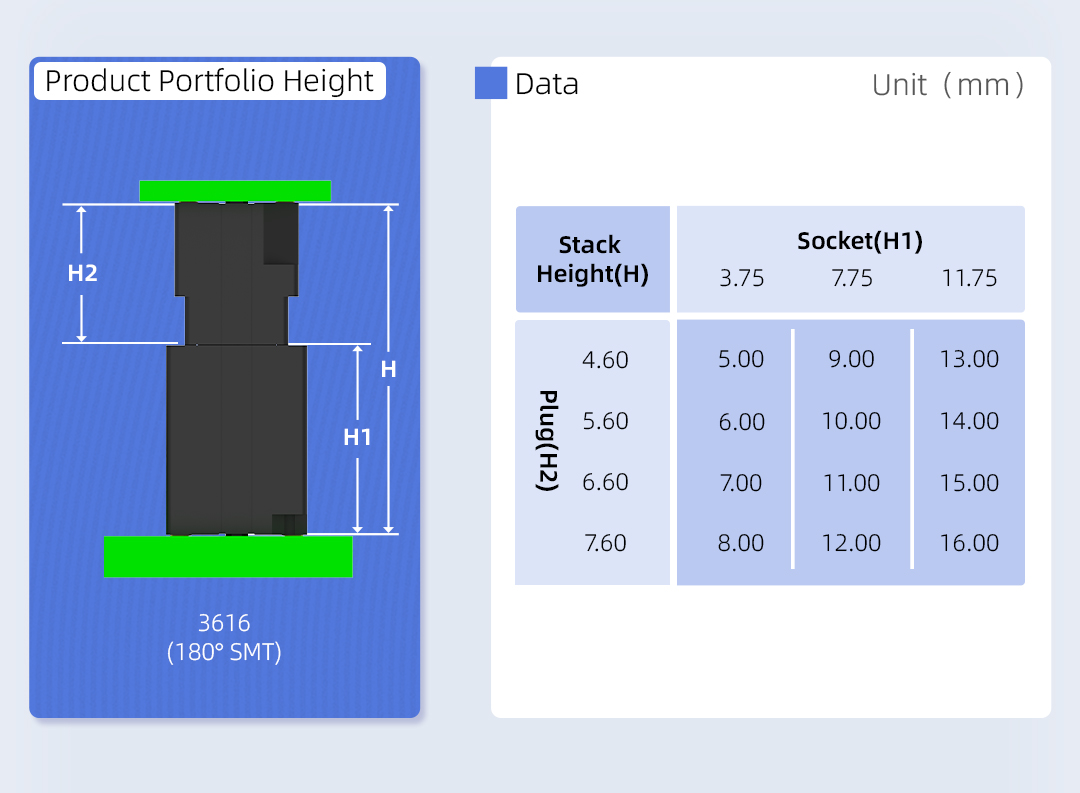

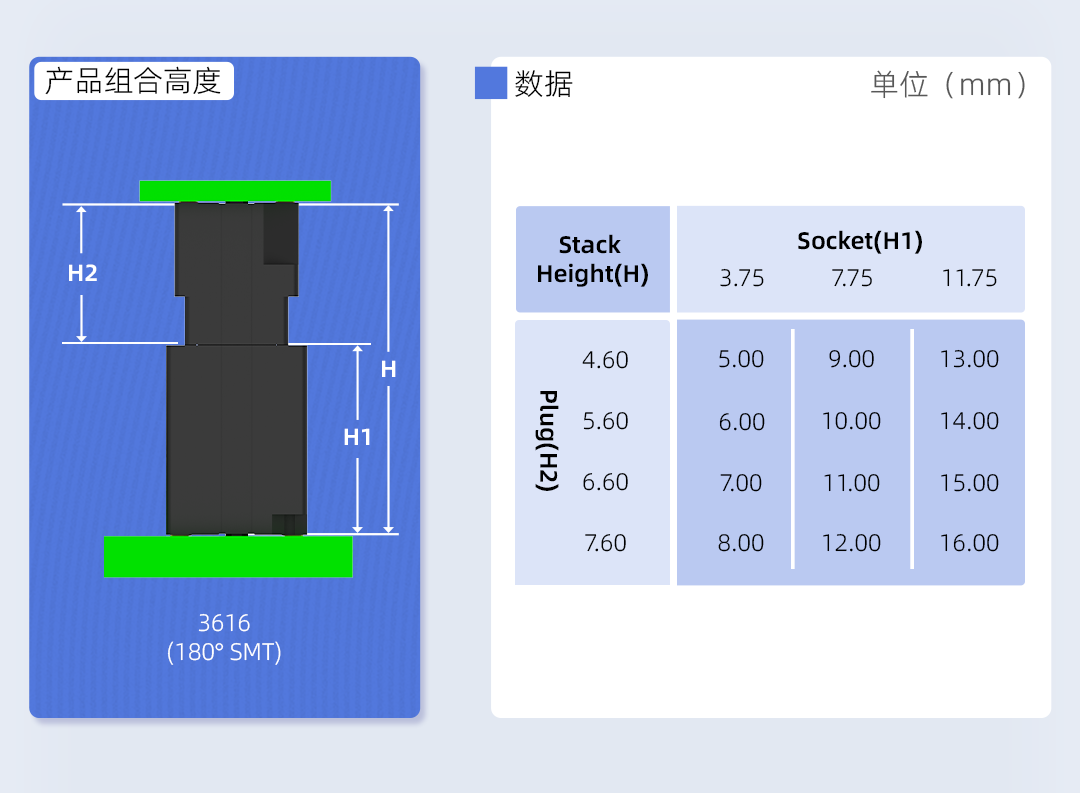

| - Stacking height: 5.00-16.00mm is optional. | - Insulation resistance: 500MΩ Min |
| - Withstanding Voltage: 500V AC/Min | |
| - Operating temperature: -40°C to +125°C |
| standard | Application |
| - EIA-364 | - Industrial control and automation |
| - Consumer electronics |
