In high-end industrial automation, the signal integrity is highly demanded with high-density interconnects. To meet this challenge, WCON Electronics 3615 Series high-density board-to-board connectors with 0.80mm pitch and a compact form  guarantee stable signal transmission and robust performance in your equipment.

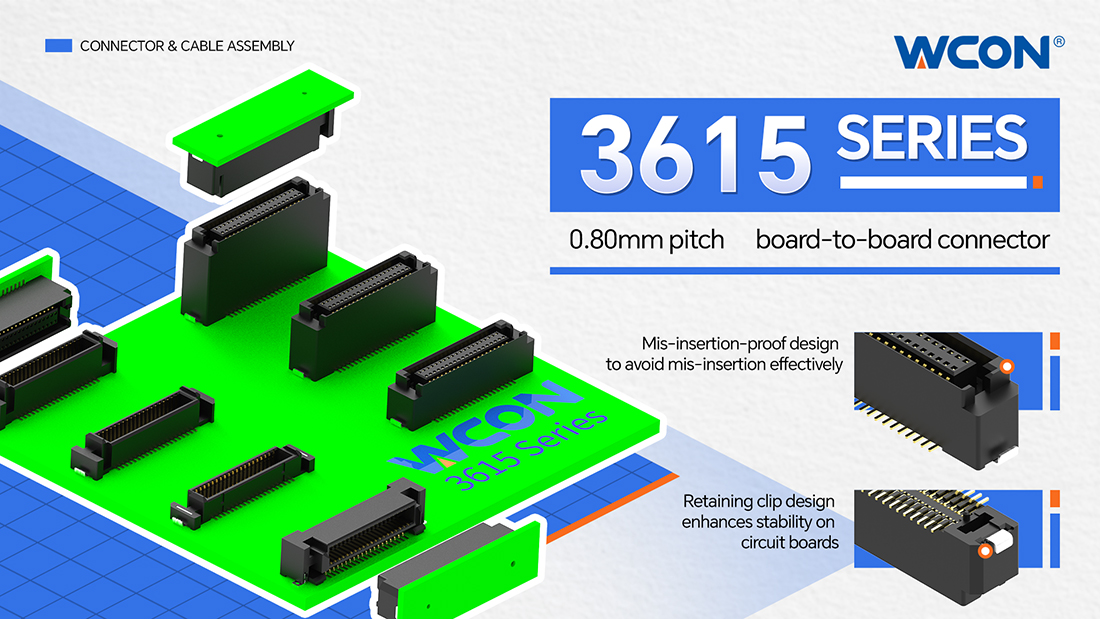

3615 Series feature alignment pins and error-free insertion design for precise mating, support multiple stacking heights to accommodate diverse stacking requirements, and enhance PCB mounting stability through a robust retention structure. 3615 Series are widely applied inside automation equipment and industrial computers.

Product Features

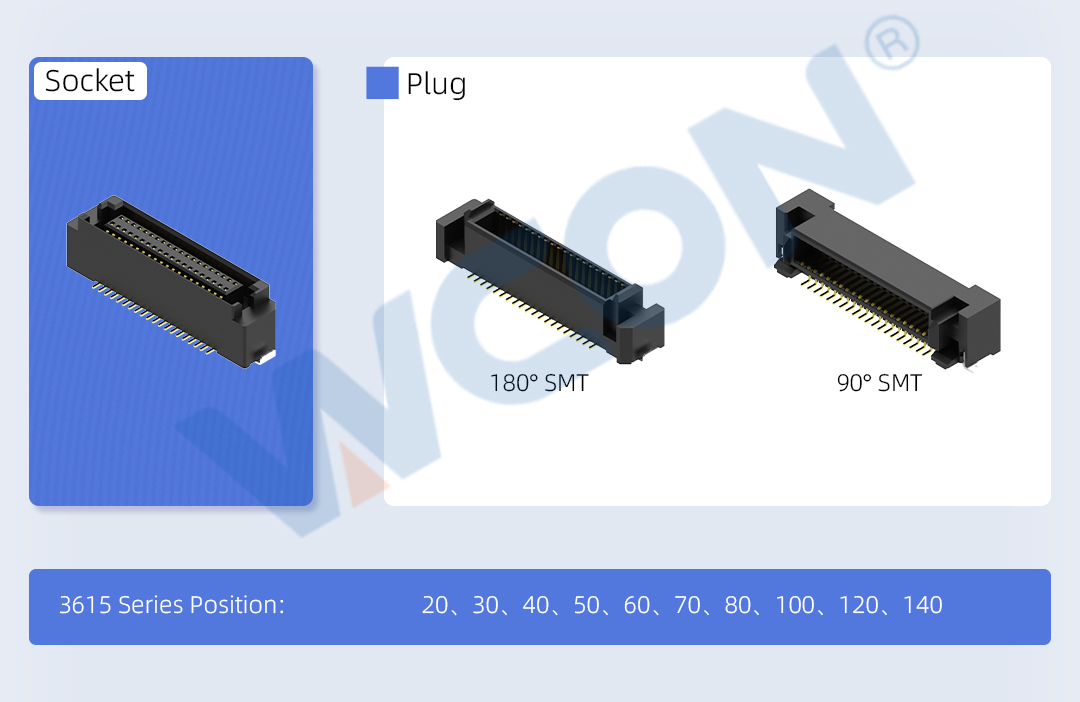

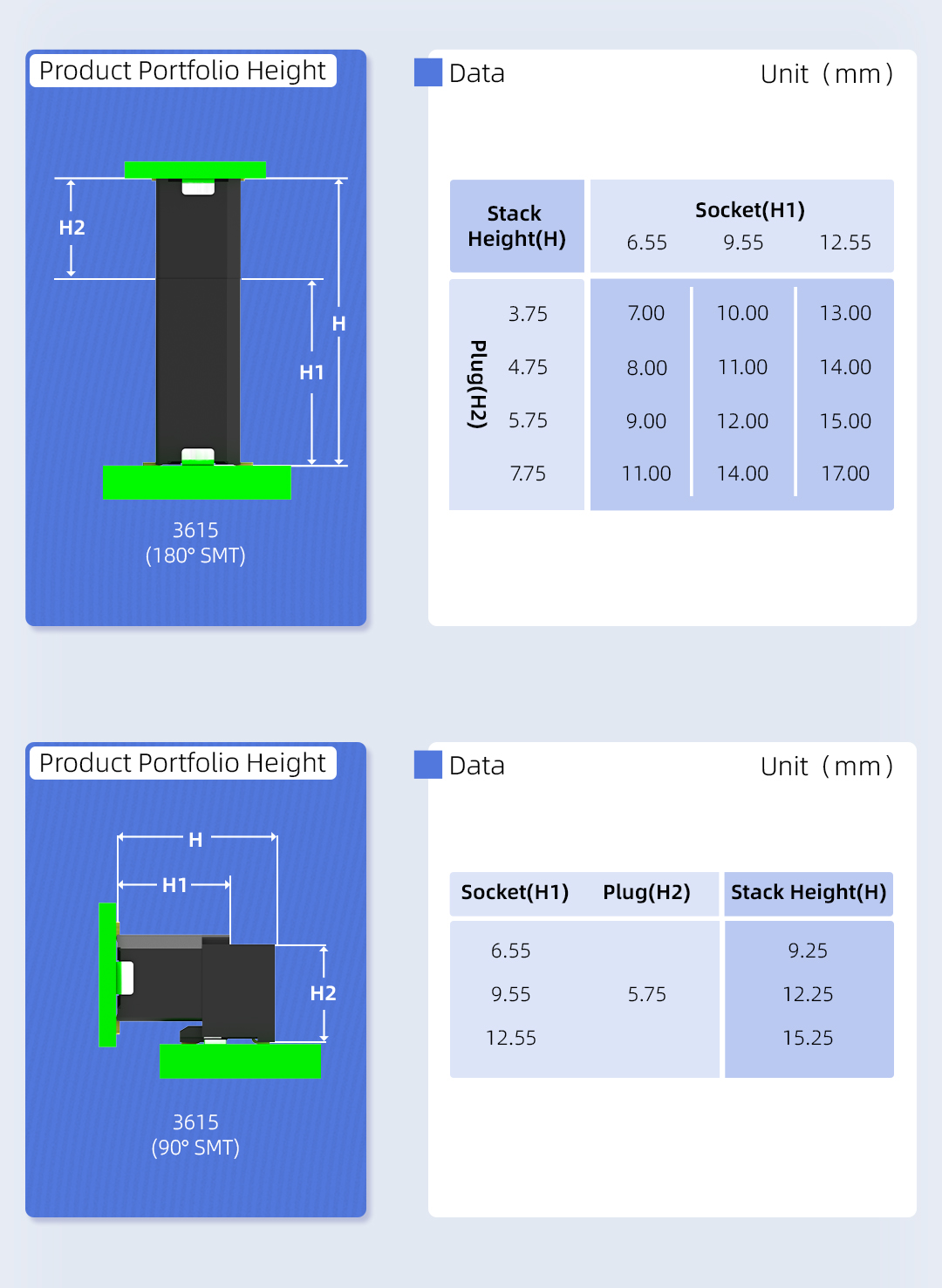

- Wide mating height range: 7–17mm

- Up to 140 pins

- Locking clip design for secure connection

- Polarized design for correct connection.

Performance Specifications

- Rated current: 0.5A

- Rated voltage: 200V AC

- Insulation resistance: 1000MΩ Min

- Withstand voltage: 500V AC/Min

- Operating temperature: -40°C to +105°C

Standards

- EIA 364

Data Sheet

Applications

- Industrial Automation

- Industrial Equipment

Access Technical Resources

Download the detailed 3615 Series datasheet (PDF) and view the 3D model online to streamline your project selection and design process.

Request Professional Support

Our technical experts are ready to assist you with product selection, custom solutions, and any technical inquiries for the 3615 Series.
