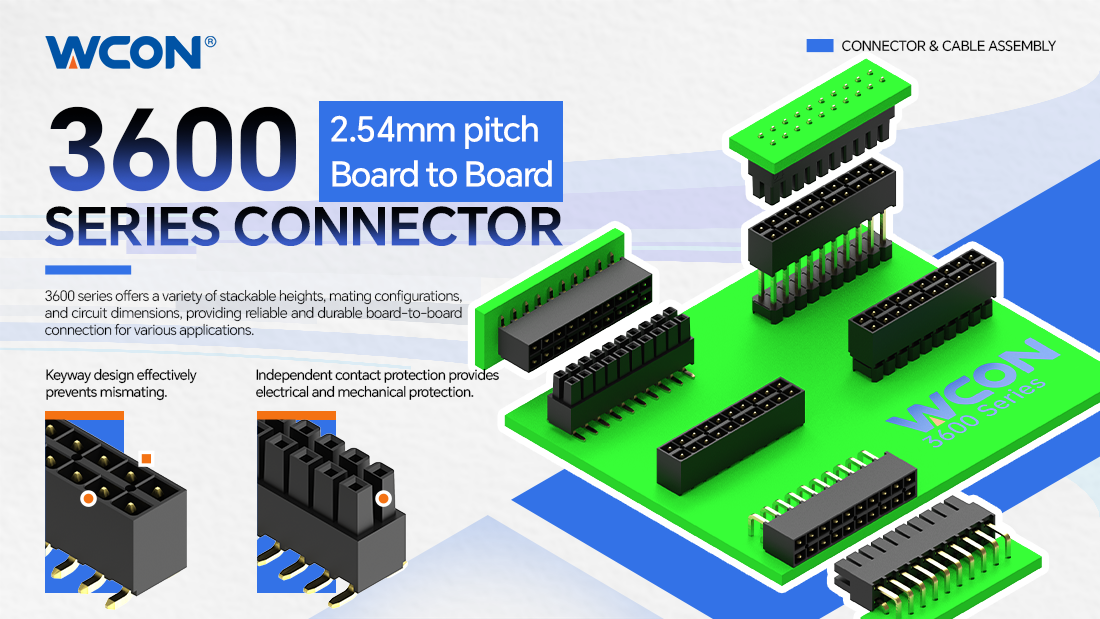

Engineered for the evolving challenges of industrial control systems, the WCON 3600 Series is 2.54mm pitch board-to-board connector. It delivers design flexibility through multiple stacking heights and mating types, easily adapting to varied PCB dimensions and spatial constraints.

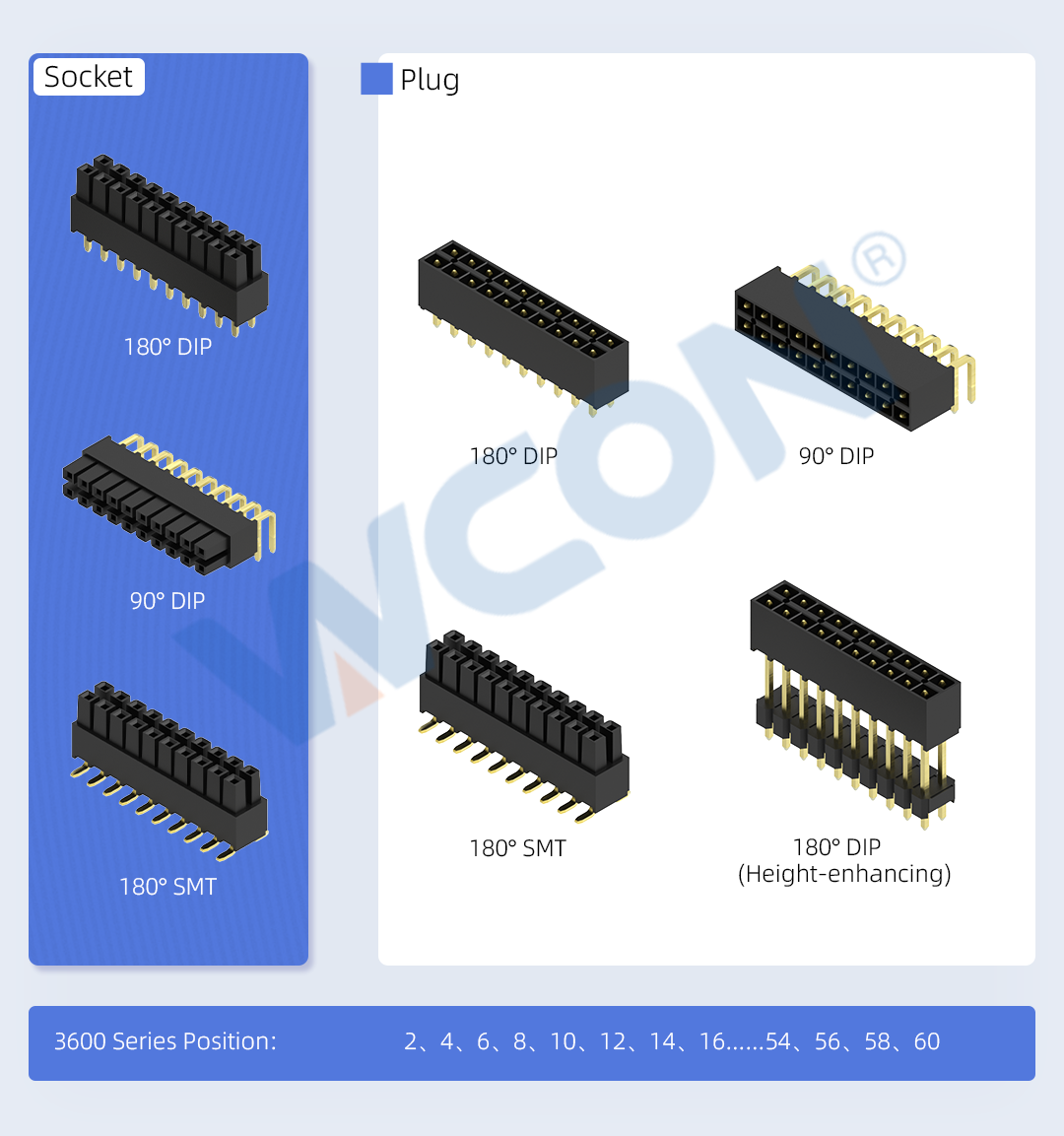

The product incorporates polarized male/female interfaces to prevent misinsertion. Its independent contact structure provides dual electrical and mechanical protection for connection points. Supporting both vertical and horizontal connection orientations, it offers high design flexibility.

Product Features

- Polarized keyway design prevents misinsertion

- Contact protection design ensures connection integrity

- Stack heights: 14.00–36.27mm options available

Performance Specifications

- Rated current: 3.0A

- Rated voltage: 250V AC

- Insulation resistance: 1000MΩ Min

- Withstand voltage: 775V AC/Min

- Operating temperature: -55°C to +105°C

 Standards

- EIA-364

- IEC 60512

Data sheet

Applications

- Industrial control and automation

- Consumer electronics
