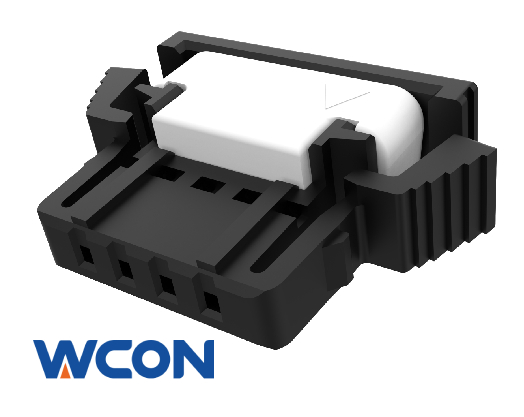

3918-SXX-1C00GBXA1
2.00mm Pitch,Socket,Single Row,With TPA.
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 200 V/AC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 8 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA66 | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1600 V/AC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-

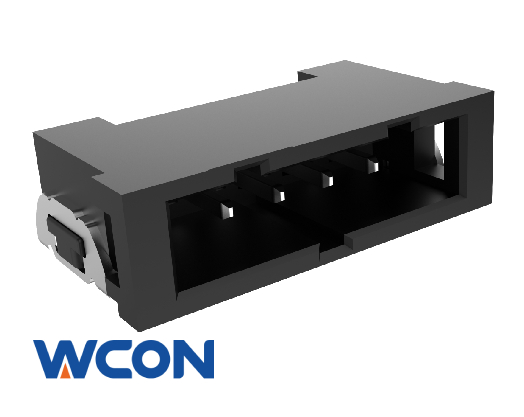

2.00mm Pitch,Plug,Single Row,Vertical,Surface Mount
-
2.00mm Pitch,Plug,Single Row,Vertical,Through Hole
-
2.00mm Pitch,Plug,Single Row,Horizontal,Surface Mount
-

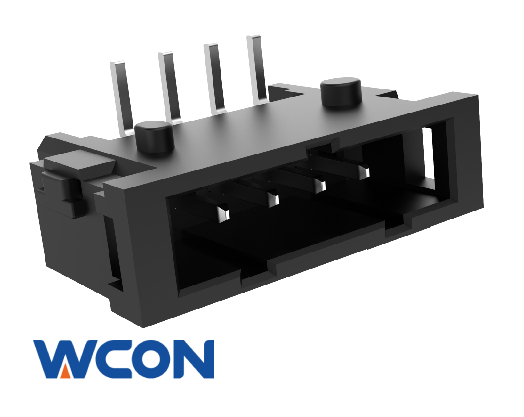

2.00mm Pitch,Plug,Single Row,Horizontal,Through Hole
-

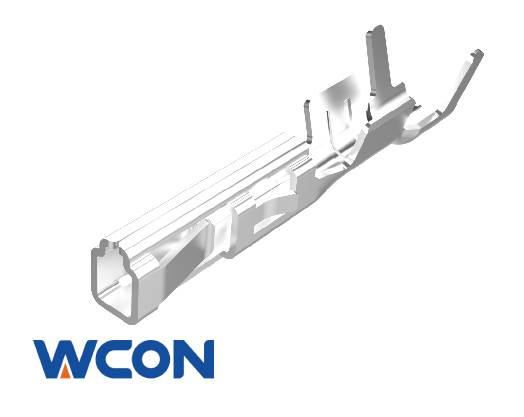

Socket,Contact
