WCON 3600 Series Board-to-Board Connectors

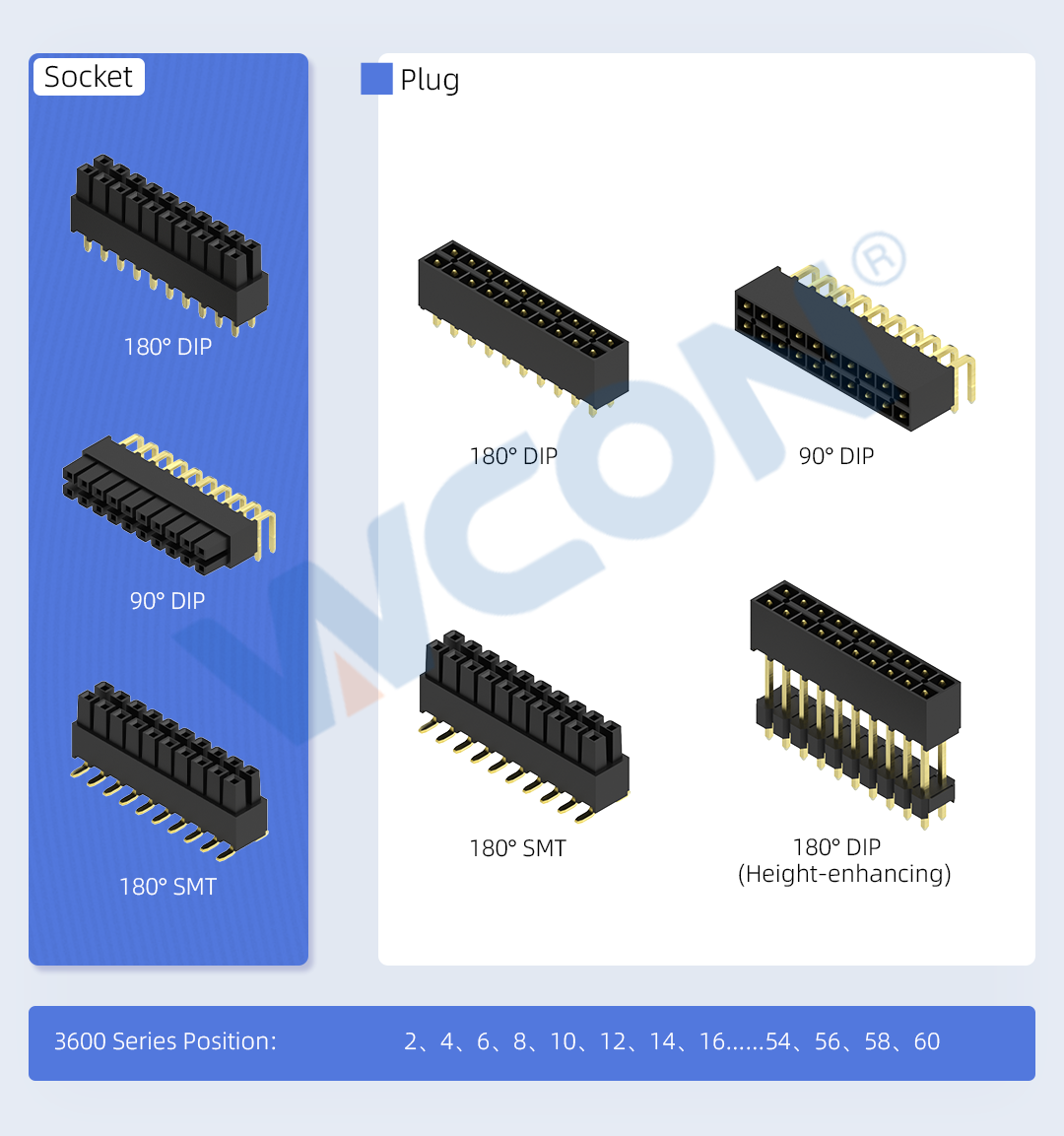

Engineered for the evolving challenges of industrial control systems, the WCON 3600 Series is 2.54mm pitch board-to-board connector. It delivers design flexibility through multiple stacking heights and mating types, easily adapting to varied PCB dimensions and spatial constraints.
The product incorporates polarized male/female interfaces to prevent misinsertion. Its independent contact structure provides dual electrical and mechanical protection for connection points. Supporting both vertical and horizontal connection orientations, it offers high design flexibility.
| Product Features |
Performance Specifications |
| - Polarized keyway design prevents misinsertion |
- Rated current: 3.0A |
| - Contact protection design ensures connection integrity | - Rated voltage: 250V AC |
| - Stack heights: 14.00–36.27mm options available | - Insulation resistance: 1000MΩ Min |
|
- Withstand voltage: 775V AC/Min |
|
|
- Operating temperature: -55°C to +105° |
|
Standards |
Applications |
|
- EIA-364 |
- Industrial control and automation |
|
- IEC 60512 |
- Consumer electronics |
Data Sheet
