3600-PXXX-063MXXX01
Board To Board Connector,Plug,Vertical SMT,Surface Mount,Dual Row,6.35mm Height,Gold plating，Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 250 V/AC,V/DC | Operation Temperature | -55°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 100 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 775 V/AC,V/DC | Packaging | Reel,Tube | |
ROHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-

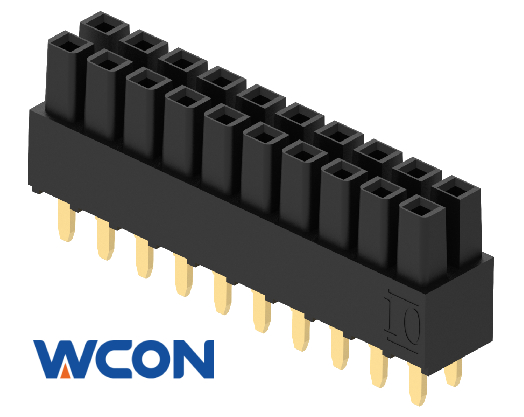

Board To Board Connector,Socket,Vertical SMT,Surface Mount,Dual Row,8.51mm Height,Gold plating
-
Board To Board Connector,Socket,R/A DIP,Surface Mount,Dual Row,8.51mm Height,Gold plating
-
Board To Board Connector,Socket,Vertical DIP,Surface Mount,Dual Row,8.51mm Height,Gold plating
