FT3A-XXXXCABXXX-01

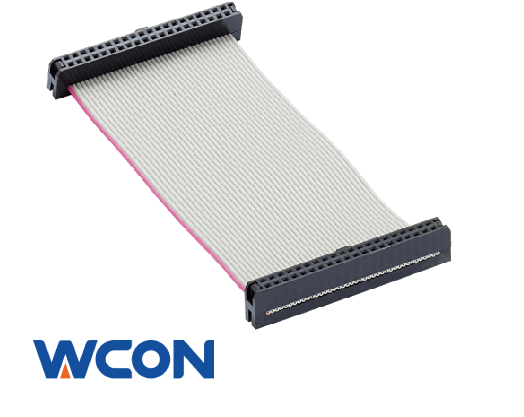

1.27mm Pitch IDC Connector,Socket,Open,Cable Assembly,P1,Gray Cable,30 AWG,Gold or Sn over Ni,Black
Inquiry Now Register
/assets/upload/2024-01-05/IMG_1469-2-1.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 100 V/AC Operation Temperature -40°C - +105°C
Rated Current 1 AMP Contact Material Phosphor Bronze
Contact Resistance 1 mΩ Max Insulator Material PBT
Insulation Resistance 5 MΩ Min Contact Plating Au&Sn
Withstand Voltage 300 V/AC Packaging PE Bag

ROHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • 1.27mm Pitch IDC Connector,Socket,Double Row,Two-piece,With Bump,Gold or Tin over nickel
    5232-series
