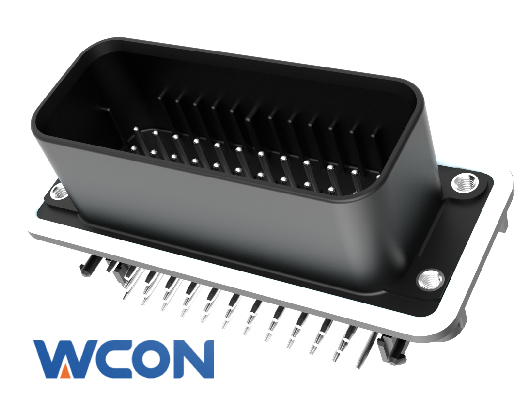

74040-3MR035ABXXJAX(W)
4.00mm Pitch,Male,Horizontal,Through Hole,Triple Rows,Tin Plating,With Post,With Screw,Enhanced Type
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 8 AMP | Contact Material | Brass | |
| Contact Resistance | 10 mΩ Max | Insulator Material | PBT | |
| Insulation Resistance | 5000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
4.0mm Pitch,Housing,Positive Lock, 8 Circuits
-
4.00mm Pitch,Female contact
