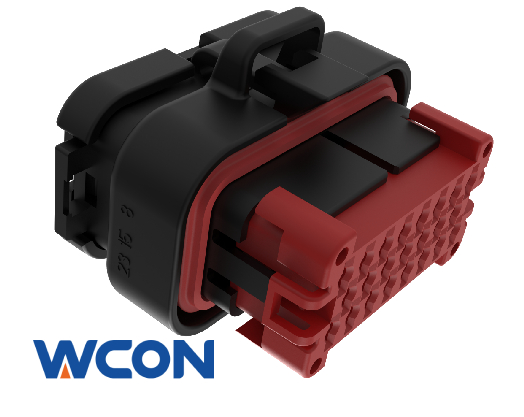

74040-3FC023AN00WAX(W)
4.00mm Pitch,Triple Rows,Housing,Positive Lock
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 8 AMP | Contact Material | Phosphor Bronze | |
| Contact Resistance | 10 mΩ Max | Insulator Material | PBT | |
| Insulation Resistance | 5000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
4.0mm Pitch,Male,Vertical,Standard Type
-
4.0mm Pitch,Male,Vertical,Enhanced Type
-
4.0mm Pitch,Male,Horizontal,Standard Type
-
4.0mm Pitch,Male,Horizontal,Enhanced Type
-
4.00mm Pitch,Female contact
